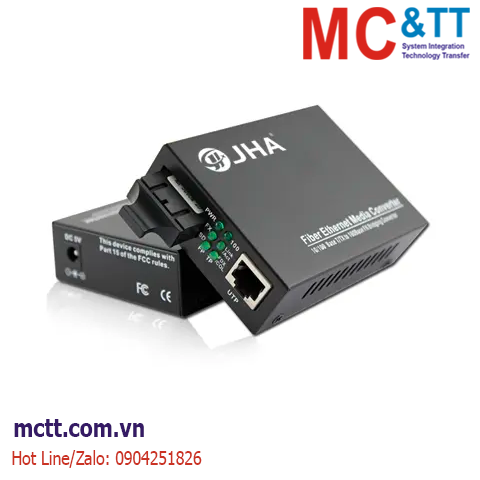

JHA-F11P-20 là bộ chuyển đổi quang điện – Media converter 1 cổng PoE Ethernet sang 1 cổng quang (Dual Fiber, Single Mode, SC, 20KM) của hãng JHA Technology được MC&TT phân phối và bảo hành chính hãng tại thị trường Việt Nam.
This JHA-FS11P series Media Converter are 10/100Base T/TX to 100Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE). which allows the converter to provide power to IEEE802.3af PoE standard-compliant
Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.
More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well.The best data link and power sourcing solution for long reach network equipment
Tính năng
- With PoE supported to save power infrascture cost.
- IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible.
- Connect to PoE switches.mid-span hubs.or otcher 802.3af Power Source Equipment(PSE).
- Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.
- PoE ports provide up to 30W of 48V DC power output.
- The transmission distance series is complete, which can realize the transmission of up to 100 kilometers.
- Fanless efficient heat dissipation, reducing repair time
Thông số kỹ thuật
|
Protocol Standard
|
IEEE802.3i 10BASE-T
IEEE802.3u 100BASE-TX
IEEE802.3z 1000BASE-TX
IEEE802.3x Flow Control
IEEE802.3af Power over Ethernet |
|
Wavelength
|
1310nm/ 1490nm/ 1550nm |
|
PoE power
|
15.4W per port (IEEE802.3af)
Wiring: Data & power provided over pairs 1/2 and 3/6
Cable:UTP cat.5 or higher |
|
Fiber type
|
Multi mode(MM): 62.5/125m.50/125m
Single mode(SM): 9/125m |
|
Distance
|
Multi mode & Dual Fiber 2KM
Single mode & Single Fiber:20/40/60/80/100KM
|
|
Data rate
|
10/100Mpbs |
|
Connector
|
RJ45,SC/ST/FC/LC
|
|
Exchange property
|
MAC address table: 1K
Packet buffer: 1Mbit
Packet forwarding rate: non-blocking wire-speed forwarding
Swap Latency: <5μs
|
|
Power
|
External Power Adapter: 220VAC to 48VDC (46 ~ 56VDC)
|
|
Power Consumption
|
<30w |
|
Working Environment
|
Operating Temperature: -10~50℃
Storage Temperature: -20~70℃
Humidity: 10% to 90% non-condensing
|
|
Dimension
|
94*71*26mm ( L * W * H ) |
Thông tin đặt hàng
1 100Base-FX and 1 10/100Base-T(X) IEEE802.3af/at PoE/PoE+,Single-mode, Dual Fiber, 20Km, SC Connector
