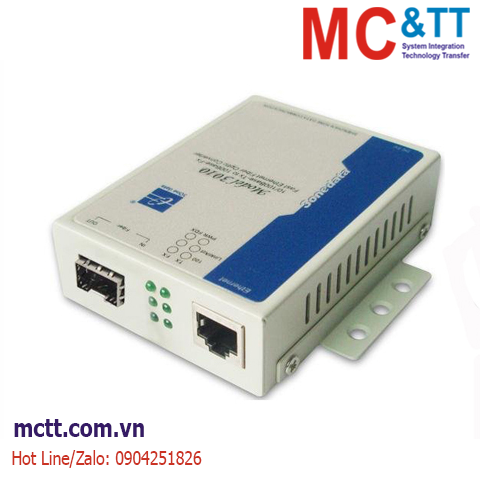

Bộ chuyển đổi quang điện 1 cổng Gigabit Ethernet sang quang SFP 3onedata Model3011
Model3011, 10/100/1000Mbps adaptive Gigabit Ethernet fiber converter uses the switching technology to conduct media conversion, which meets the standards of IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab. This kind of media converter supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T and 1000Base-SX/LX.Model3011 can conduct mutual conversion between 10Base-T/100Base-TX/1000Base-T twisted pair electrical signals and 1000Base-SX/LX optical signals. This media converter extends the transmission distance of a network from 100m over copper wires to 120 Km. This media converter supports transmission in dual-fiber multi-mode, dual-fiber single-mode, SFP style fiber-optic connections.
Tính năng
- Accord to IEEE802.1 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-TX, IEEE802.3z 1000Base-SX/LX
- MDI/MDI-X auto negotiation, 10M/100M/1000M auto negotiation
- Supports full /half duplex, Point-to-point transparent transfer
- With one SFP slot
- Plug-and-play, easy to installation
- Can insert to 2U 19″, 14 slots Rackmount
Thông số kỹ thuật
| Standard
&Protocol |
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X |
| Interface |
Copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control,
Full/Half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 1000Base-FX, optional SC/ST/FC |
| LED Indicator |
Copper port connection status indicator, copper port duplex mode indicator, fiber port connection status indicator, power supply connection status indicator, copper port 100M speed indicator, copper port Gigabit speed indicator |
| Switch Property |
Transmission mode: store-and-forward
Switch time delay: ＜ 10μs
Mac address: 1K
Packet buffer size: 12KB
Backplane bandwidth: 4G |
| Power Requirement |
Input voltage 5VDC |
| Power Consumption |
No-load: ≤1.55W@5VDC
Full-load: ≤2.35W@5VDC |
| Environmental Limit |
Operating temperature range: -10~60℃
Storage temperature range: -20~70℃
Relative humidity: 5%～ 95% (no condensation) |
| Physical Characteristic |
Installation: slide-in mounting
Weight: 0.05kg
Dimension (W x H x D): 94.0×71.0×26.0mm(external power supply) |
| Certification |
CE, FCC, RoHS |
Thông tin đặt hàng
10/100/1000M media converter with one SFP slot
Tài liệu
Datasheet
