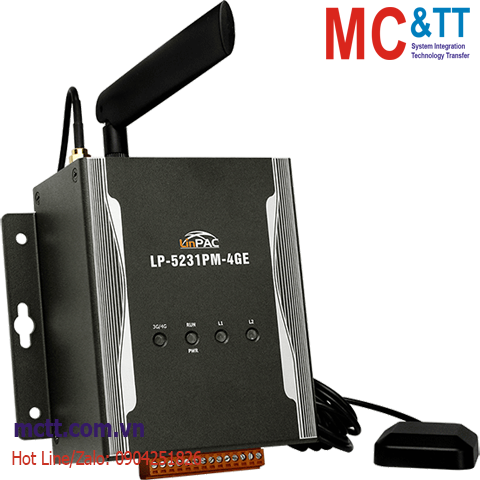

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 + LTE (4G) + GPS ICP DAS LP-5231PM-4GE CR

Chia sẻ:
Mã sản phẩm: LP-5231PM-4GE
Thương hiệu: ICP DAS
Tình trạng:

4G Linux Based Metal PAC with Cortex-A8 CPU, 1 LAN Port, GPS (Except China)

Liên hệ
Mô tả

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 + LTE (4G) + GPS ICP DAS LP-5231PM-4GE CR

Features

• Cortex-A8 (1.0 GHz) CPU
• Linux kernel 3.2.14 Inside
• Embedded Service: Web Server, FTP Server, Telnet Server, SSH Server
• 64-bit Hardware Serial Number
• I/O Expansion Bus: XV-Board
• 4 Serial Ports (RS-232/485)
• Industrial Tri-band 4G module
• 4G Modem

Introduction

The LP-5231PM-4GE is equipped with a Cortex-A8 CPU (1 GHz) and running a Linux operating system (Linux Kernel 3.2.14) that is a compact and real-time OS used to quickly create time critical and high performance applications.

The optional I/O expansion board, XV-board, provides high-protection I/O. Using the built-in Flash and microSD, the LinPAC can save application program, image file and data.

The 4G module of LP-5231PM-4GE work on frequencies of WCDMA 2100/900/850 MHz, FDD LTE: B1/B3/B5/B7/B8/B20 and GSM 850/900/1800/1900 MHz. These modules utilize the 3G/4G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS/3G/4G connection applications with our PAC.

https://mctt.vn/lp-5000

Specifications

Software
OS Linux Kernel 3.2.14
Service SFTP server, Web server, SSH
SDK LinPAC SDK (GCC based toolchain and LinPAC Libraries)
Main Unit
CPU Cortex-A8, 1 GHz
64-bit Hardware Serial Number Yes, for Software Copy Protection
System Memory 512 MB DDR3 SDRAM
Storage • Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card)
Non-Volatile Memory FRAM 64 KB
Real Time Clock Yes (Provide seconds, minutes, hours, day of week, month, year)
Watchdog Timer Yes, Dual Watchdog Timer
Display
Signal VGA (Analog RGB)
Resolution Up to 1280 x 1024
LED Indicators
Status 1 x Power
1 x Run
2 x Programmable
3G System
Data Transmission Rate DC-HSPA+ Download: Max. 42 Mbps; Upload: Max. 5.76 Mbps
TD-SCDMA Download: Max. 4.2 Mbps; Upload: Max. 2.2 Mbps
CDMA2000 EVDO Download: Max. 14.7 Mbps; Upload: Max. 5.4 Mbps
Frequency Band WCDMA 850/900/2100 MHz
4G System
Data Transmission Rate Download Max. 100 Mbps; Upload Max. 50 Mbps
Frequency Band FDD LTE: B1/B3/B5/B7/B8/B20
GPS/GNSS
Channels 32
Protocol NMEA 0183
I/O Expansion
I/O Type XV-board
COM Ports
Ports 1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
1 x RS-485, Non-isolated
1 x RS-485 (2500 VDC, Isolated)
HMI
Rotary Switch Yes (0 ~ 9)
Ethernet
Ports 1 x RJ-45, 10/100/1000 Base-TX
USB
Ports 1
Specification USB 2.0 (Host)
Power
Input Range +12 VDC ~ +48 VDC
Consumption 6.5 W
Mechanical
Casing Metal
Dimensions (mm) 117 x 126 x 58 (W x L x H)
Installation DIN-Rail or Wall Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

LP-5231PM-4GE     CR  4G Linux Based Metal PAC with Cortex-A8 CPU, 1 LAN Port, GPS. Metal Case (RoHS) (Except China)
