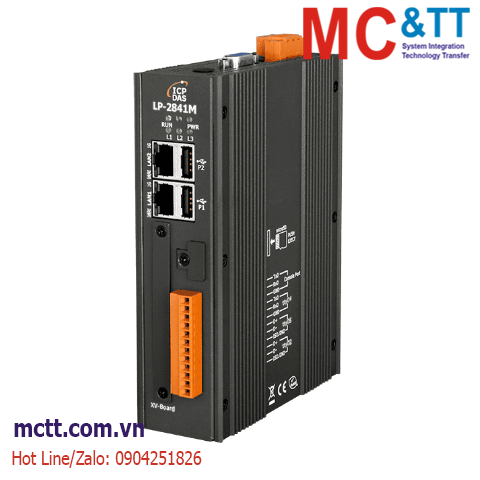

Bộ lập trình nhúng Linux PAC với CPU Cortex-A53 ICP DAS LP-2841M CR
The LP-2841M is equipped with a Cortex-A53 (1.6 GHz, quad-core) CPU running a Linux operating system (Linux Kernel 5.4.70), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools.
Linux Kernel 5.4.70 is a compact and real-time OS used to quickly create time critical and high performance applications.
Main advantage of the LP-2841M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).
Features
• Cortex-A53 (1.6 GHz, quad-core) CPU
• Linux kernel 5.4.70 Inside
• 2 GB RAM and 8 GB eMMC
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus (XV-Board)
• 10/100/1000M Dual Ethernet Port
• 4 Serial Ports (RS-232/485)
https://mctt.vn/lp-2000-icp-das
Specifications
| Software |
| OS |
Linux Kernel 5.4.70 |
| Service |
SFTP server, Web server, SSH |
| SDK |
LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit |
| CPU |
4x Cortex-A53 core platforms up to 1.6 GHz per core |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| System Memory |
2 GB DDR3 SDRAM |
| Storage |
• eMMC 8 GB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory |
FRAM 64 KB |
| Real Time Clock |
Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer |
Yes, Dual Watchdog Timer |
| Display |
| Signal |
VGA (Analog RGB) |
| Resolution |
Up to 1920 x 1080 |
| LED Indicators |
| Status |
1 x Power
1 x Run
3 x Programmable |
| I/O Expansion |
| I/O Type |
XV-board |
| HMI |
| Buzzer |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| COM Ports |
| Ports |
1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
2 x RS-485 (2500 VDC, Isolated) |
| USB |
| Ports |
2 |
| Specification |
USB 2.0 (Host) |
| Power |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
4.8 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
35 x 167 x 119 (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting (optional) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| LP-2841M CR |
Linux Based Metal PAC with Quad-Core Cortex-A53 CPU and 2 LAN Ports (RoHS) |
