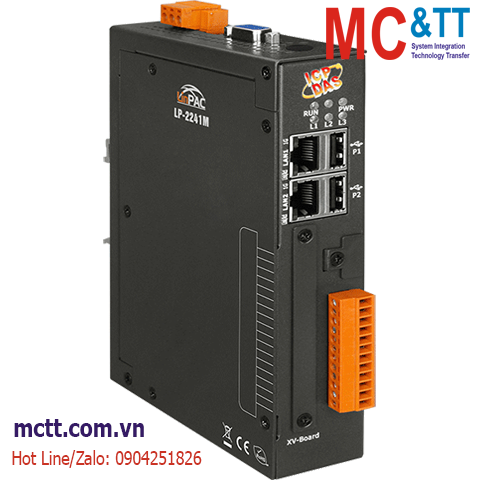

Bộ lập trình nhúng Linux PAC với CPU Cortex-A8 ICP DAS LP-2241M CR
Features
• Cortex-A8 (1.0 GHz) CPU
• 512 MB RAM and 512 MB Flash
• Linux kernel 3.2.14 Inside
• Real-Time Capability
• 64-bit Hardware Serial Number for Software Protection
• I/O Expansion Bus (XV-Board)
• 10/100/1000M Dual Ethernet Port
• 4 Serial Ports (RS-232/485)
Introduction
The LP-2241M is equipped with a Cortex-A8 CPU (1 GHz) running a Linux operating system (Linux Kernel 3.2.14), a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and powerful software including development tools. Linux Kernel 3.2.14 is a compact and real-time OS used to quickly create time critical and high performance applications.
Main advantage of the LP-2241M is its high quality control system, including its stability, small core size, optional I/O expansion board, support for Web services (Web/SFTP/SSH server).
https://mctt.vn/lp-2000-icp-das
Specifications
| Software |
| OS |
Linux Kernel 3.2.14 |
| Service |
SFTP server, Web server, SSH |
| SDK |
LinPAC SDK (GCC based toolchain and LinPAC Libraries) |
| Main Unit |
| CPU |
Cortex-A8, 1 GHz |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| System Memory |
512 MB DDR3 SDRAM |
| Storage |
• Flash 512 MB
• microSD socket with a 4 GB microSD card (support up to 32 GB microSDHC card) |
| Non-Volatile Memory |
FRAM 64 KB |
| Real Time Clock |
Yes (Provide seconds, minutes, hours, day of week, month, year) |
| Watchdog Timer |
Yes, Dual Watchdog Timer |
| Display |
| Signal |
VGA (Analog RGB) |
| Resolution |
Up to 1280 x 1024 |
| LED Indicators |
| Status |
1 x Power
1 x Run
3 x Programmable |
| I/O Expansion |
| I/O Type |
XV-board |
| COM Ports |
| Ports |
1 x RS-232 (Console, Non-isolated)
1 x RS-232, Non-isolated
1 x RS-485, Non-isolated
1 x RS-485 (2500 VDC, Isolated) |
| HMI |
| Rotary Switch |
Yes (0 ~ 9) |
| Ethernet |
| Ports |
2 x RJ-45, 10/100/1000 Base-TX |
| USB |
| Ports |
2 |
| Specification |
USB 2.0 (Host) |
| Power |
| Input Range |
+12 VDC ~ +48 VDC |
| Consumption |
4.8 W |
| Mechanical |
| Casing |
Metal |
| Dimensions (mm) |
35 x 167 x 119 (W x L x H) |
| Installation |
DIN-Rail or Wall Mounting (optional) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| LP-2241M CR |
Linux Based PAC with Cortex-A8 CPU and 2 LAN Ports. Metal Case (RoHS) |
