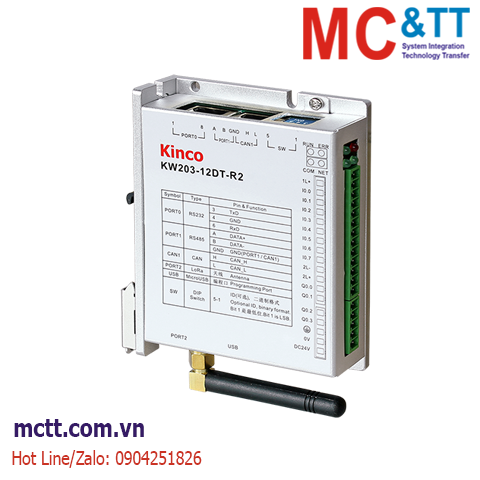

Bộ lập trình PLC Kinco KW203-12DT-R2 (8*DI, 4*DIO, 1*CAN, 1*RS232, 1*RS485)
Kinco KW series PLC is a kind of Small integrated PLC, wireless products for intelligent manufacturing.
KW Series PLC in the continuation of the K5, K2 series of rich functions, high performance and high reliability of the premise, the use of higher performance CPU. It also provides functions closer to users' needs, such as built-in Ethernet interface, MicroUSB, high performance high-speed input and output, compact installation, and rich extension modules. It CAN also meet the needs of users in various applications.
Tính năng
- The continuation of the K5, K2 series features rich high-performance high reliability.
- Higher performance CPU.
- Built-in CAN bus interface, Micro USB programming.
- Mini size, metal shell.
Thông số kỹ thuật
| Model |
Order number |
Specification |
| DC 24V |
DI |
DIO |
High speed input |
High speed output |
COM port |
Wireless network |
Extension module |
Dimension (L*W*H) (Unit:mm) |
| KW2 |
KW203-12DT-R2 |
8 |
4 |
4*up to 200KHz
Single phase and AB phase |
2 *up to 200KHz |
1*CAN
1*RS232
1*RS485 up to 115.2kbps |
LoRa comunication |
Up to 14 |
100*84.5*25.4 |
| Model |
Order number |
Specification |
| DC 24V |
Parameter setting |
COM port |
Wireless network |
Dimension
(L*W*H)
(Unit:mm) |
| KW |
KW143-R1-V000 |
MicroUSB |
1*RS485 and RS232
(choose one at working) |
LoRa comunication |
66*65*23 |
| Power supply |
DC24V (DC20.4V-DC28.8V) |
| Built-in I/O points |
12I/O, 8*DI, 4*DIO |
| Expansion module |
up to 14 KS series expansion modules |
|
High-speed input |
4, support single phase and AB phase, Max: 200KHz |
| High-speed output |
2, support pulse + direction, Max: 200KHz (The resistor of load must be less than 1.5KΩ) |
| Communication port |
1*Micro USB (Programming port), 1*RS232, 1*RS485, 1*CAN (can be used as an extended port) |
| Wireless communication port |
1*LoRa, frequency band 2.4GHz
Rate: 0.59-1300Kbps |
| Wireless transmission distance |
the visible communication distance is greater than 1KM (clear weather, no obstruction, antenna gain 3dBi, antenna height 2 meters) |
| Real-time clock |
built-in, time deviation is less than 5min/month at 25℃ |
| Installation size (mm) |
100*84.5*25.4mm (LxWxH) |
| Memory area |
User program memory--Max 4K steps
User data memory--M area 1Kb, V area 4Kb
Data backup characteristic--E2PROM, 448 bytes
Data retention characteristic--V area 1K bytes (VB0-VB1023), C area (C0-C64)
Lithium battery, 3 years at normal temperature |
| Data back up memory |
EEPROM, Maximum. 1K bytes supported |
| Retentive memory range |
V area (16K bytes) + C area (Counter, 512 bytes).
Lithium battery, 3 year lifetime at room temperature |
Thông tin đặt hàng
DC24V power supply, DI 8*DC24V, DIO 4*DC24V, 1*RS232, 1*RS485, 1*CAN，expand CAN modules
