Module 2 đầu ra + 2 đầu vào tương tự Kinco K633-04IV
Tính năng
Thông số kỹ thuật
| Input channel |
2, 4-20mA, 1-5V, 0-20mA, 0-10V signals are optional |
| Measurement accuracy |
0.3%F.S |
| Output channel |
2, 4-20mA, 1-5V, 0-20mA, 0-10V signals are optional |
| Output accuracy |
0.3%F.S |
| Parameter configuration |
Parameters of each channel can be configured by Kincobuilder software separately |
| Signal limitation |
Input current of each channel shall not exceed 24mA, input voltage shall not exceed 12V.
The value of output channel is not allowed to exceed chosen range |
| Error indication |
Red LED of each channel indicates input signal exceeds measurement range |
| Module width |
50mm |
| Name |
Order no. |
Specification |

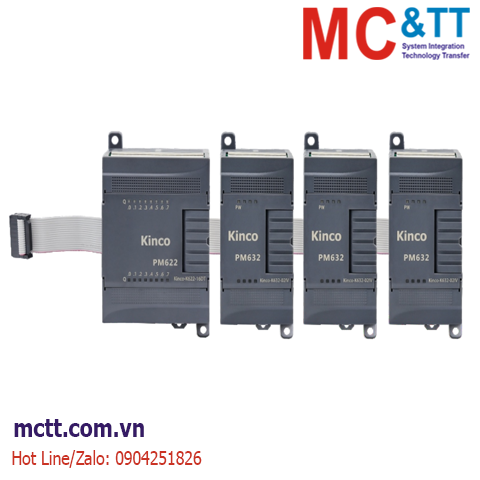

| PM621 |
K621-08DX |
DI 8*DC24V |
| K621-16DX |
DI 16*DC24V |
| PM622 |
K622-08XR |
DO 8 * relay |
| K622-16XR |
DO 16 * relay |
| K622-08DT |
DO 8*DC24V |
| K622-16DT |
DO 16*DC24V |
| PM623 |
K623-16DR |
DI 8 * DC24V, DO 8 * relay |
| K623-08DR |
DI 4 * DC24V, DO 4 * relay |
| K623-16DT |
DI 8*DC24V，DO 8*DC24V |
| K623-08DT |
DI 4*DC24V, DO 4*DC24V |
| PM631 |
K631-04IV |
4-channel AI, 4-20mA/1-5V/0-20mA/0-10V |
| K631-04RD |
4 channels RTD Input，Pt100, Pt1000, Cu50, Resistance |
| K631-04TC |
4-channel thermocouple input.
J type, K type, E type, S type, internal/external compensation selectable |
| PM632 |
K632-02IV |
2-channel AO, 4-20mA/1-5V/0-20mA/0-10V |
| PM633 |
K633-04IV |
2-channel AI, 4-20 mA / 1-5V / 0-20 mA / 0-10V
2-channel AO, 4-20 mA / 1-5V / 0-20 mA / 0-10V |
| PS680 |
K680 |
Input voltage of the extended power supply module: AC85~265V; Output rated current: 5V 1A / 24V 250mA |
Thông tin đặt hàng
2-channel AO + 2-channel AI, 4-20mA/1-5V/0-20mA/0-10V
Tài liệu
Catalog
