Module 4 đầu vào nhiệt độ RTD Kinco K631S-04RD

Module 4 đầu vào nhiệt độ RTD Kinco K631S-04RD

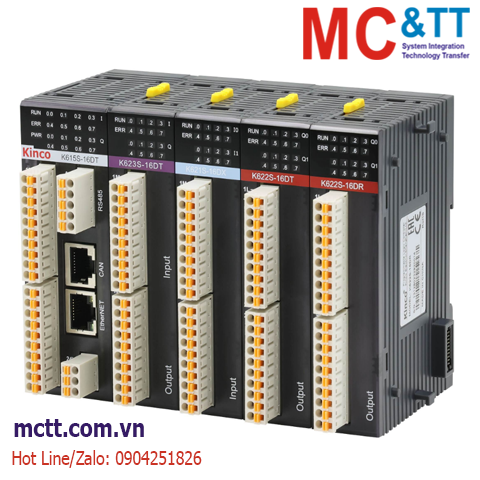

Kinco K6S series PLC is a compact modular PLC. The modular plug-in design saves more than 50% of the horizontal installation space, and the wiring can be tightened without tools, making the installation and maintenance process simpler and more efficient. The "simplified" appearance design is also equipped with a powerful core, which integrates high-speed input/output, Ethernet, CAN, RS485 and other conventional functional interfaces, further improving the flexibility, reliability, efficient control and other performance of Kinco PLC. Indicators provide reliable control solutions for industrial automation systems.

Tính năng

• Equipped with a new MCU platform, the execution speed is further improved. At the same time, it provides a program storage space of 8k instructions and a data storage space of 20k bytes (V area + M area), which guarantees the implementation of complex control programs.
• It comes standard with a 10/100M Ethernet port and supports Modbus TCP Client/Server and Modbus UDP industrial bus protocols. It is easy to use and powerful, and is suitable for application needs in more situations.
• The CAN interface supports the CANopen master function, allowing a maximum of 64 slave stations to be connected. Each slave station allows a maximum of 8 TPDOs and 8 RPDOs, and supports error control methods such as node protection and heartbeat. It supports the Kinco motion control protocol and provides easy-to-use positioning control instructions. Users can easily connect Kinco's servo and driver through the CAN bus. The Kinco motion control protocol supports the connection of up to 16 nodes.
• Integrated real-time clock (RTC), 4 high-speed pulse outputs (all channels support PTO\PWM mode), 4 high-speed counting inputs (support single\dual phase, AB quadrature counting mode), 1 Ethernet interface, 2 RS485 interface, both CAN and RS485 have built-in isolation.
• Supports the array function, supports the use of up to 16 arrays, and each array allows up to 1024 elements (the elements can be any data type supported by the K series PLC). Users can use the array function to perform functions such as maximum, minimum, average, sorting, etc. They can also use arrays to further expand data storage space.
• Supports the stack function, supports the use of up to 2 stacks, and each stack allows up to 1024 elements (the elements can be any data type supported by the K series PLC). Users can use the stack function to achieve corresponding needs, and can also use the stack to further expand the data storage space.
• Modular plug-in design saves more than 50% of installation space. A maximum of 16 expansion modules can be expanded on the right side. The module types are rich, giving users more and more flexible solutions.
• KincoBuilder software provides convenient and easy-to-use motion control instructions, and is also equipped with a guidance function to help users get started with zero threshold, rapid configuration, and efficient programming.

Thông số kỹ thuật

Expansion Module

Thông tin đặt hàng

• K631S-04RD

4 channels of thermal resistance (RTD) input support PT100, Cu50, PT1000

Tài liệu

Catalog

KincoBuilder_V8.5--Software for K series
