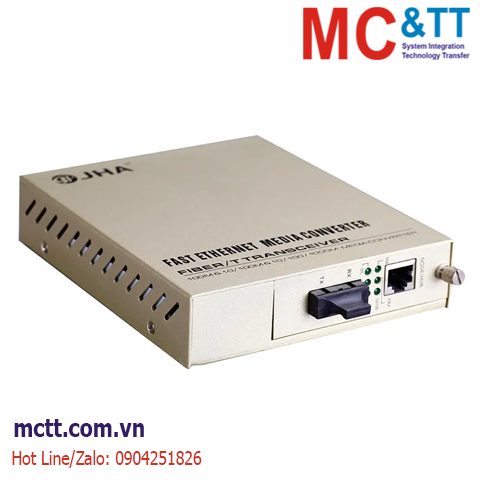

Bộ chuyển đổi quang điện quản lý 1 cổng Ethernet + 1 cổng quang JHA Tech JHA-MF11
JHA-MF11 series is a 10/100Base adaptive managed fiber-optic transceiver, with a 10/100Base-FX optical port, a 10/100Base-T(X) adaptive Ethernet port. Product design in line with Ethernet standards, add lightning protection, anti-static protection measures, -20℃-70℃ wide range of operating temperature, stable and reliable performance. The network management interface of this device is simple and functional.
Support a variety of network management, including SNMP, WEB, Console and Telnet and other network management methods, can achieve the centralized network management rack. The device can be widely used in safe city, rail transportation, operator network construction and other projects.
Tính năng
- Compliance with IEEE 802.3, IEEE 802.3U, IEEE 802.3X, IEEE 802.1Q, IEEE 802.3AB, 10Base-TX, 100Base-TX, 100Base-FX standards.
- Uses the high performance chip, realizes the non-blocking transmission exchange performance, guarantees the data transmission to have higher security and the stability.
- Support 10/100M, full/half-duplex adaptive/forced function. Auto-MDI / MDIX auto-flip.
- Support SC, FC, ST connectors (1*9 modules) and SFP transceiver modules.
- Provide status indicators, built-in power supply (AC 110-220V / DC 48-110V).
- Support 850nm, 1310nm, 1550nm and the DWDM/CWDM wavelength specified by ITUT.
- The store-and-forward mode supports a packet size of 2K bytes and the pass-through mode supports 9k Jumbo frames.
- Support the port bandwidth control function, the step is 32Kbps.
- Support loop-speed loopback, easy line debugging.
- Support LFP function, can quickly locate the link where the fault occurs
Thông số kỹ thuật
|
Protocol Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3 Flow control, IEEE 802.1q VLAN, IEEE 802.1p QoS, IEEE 802.1ad Q-in Q VLAN, TS-1000 |
|
Wavelength |
850nm/1310nm/1550nm |
|
Transmission Distance |
Cat5 100m
Multimode, Dual-fiber 2Km
Single Mode, Dual-fiber 20/40/60/80/100/120Km |
|
Ethernet Port |
RJ45 Ports, Connection STP / UTP Cat5/Cat5e Cooper Cable |
|
Fiber Port |
Multimode, Dual-fiber SC/FC/ST/LC (Diameter 50/125, 62.5 / 125μm)
Single Mode, Dual-fiber SC/FC/ST/LC (diameter 9/125μm ) |
|
Exchange Attribute |
Conversion Method: Media conversion, store and forward / straight in
MAC Add: 1 K
Cache: 512 Kbit
Full duplex state: flow control, half-duplex: backpressure mode
Store and Forward: 9.6us, Straight In: 0.9us
BER: <1/1000000000 |
|
LED Indicator |
PWR (Power Supply)
FX LINK/ACT (Optical fiber port connection)
LFP ( LFP function working )
TX LINK/ACT (Ethernet port connection)
TX SPD ( Ethernet port speed indicate )
TX DUP (Ethernet port full duplex mode) |
|
Power Supply |
Power Input: AC 110-220V / DC 48-110V
Full Load: <4 W |
|
Working Environment |
Operating Temperature: -20~70℃
Storage Temperature: -40~70℃
Storage Humidity: 5% to 90% non-condensing |
|
Dimension |
156*128*32mm ( L * W * H ) |
|
Certification |
CE, FCC, RoHS |
Thông tin đặt hàng
|
Model No. |
Description of Goods |
|
JHA-MF11 |
10/100M Multimode, Dual Fiber, 2Km, SC/ST/FC/LC Connector |
|
JHA-MF11-20/40/60/80/100/120 |
10/100M Single-mode, Dual Fiber, 20/40/60/80/100/120Km, SC/ST/FC/LC Connector |
|
JHA-MF11W-20/40/60/80/100/120 |
10/100M Single-mode, Single Fiber, 20/40/60/80/100/120Km, SC/ST/FC/LC Connector |
