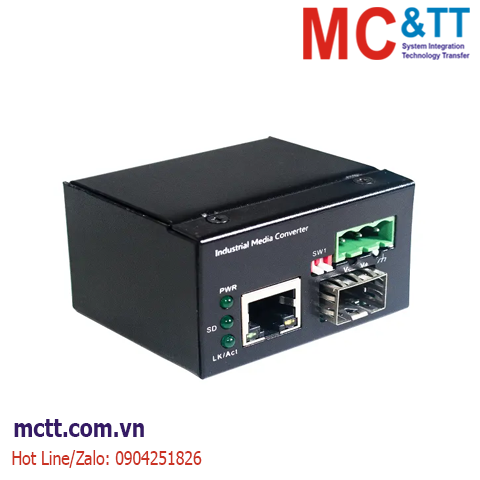

Bộ chuyển đổi quang điện công nghiệp 1 cổng Ethernet sang 1 cổng SFP JHA Tech JHA-IFS11C
JHA-IFS11C is a true mini, rugged industrial media converter, it is designed for where critical but space limited outdoor camera enclosure. It can be powered by wide range of VAC , VDC or external DC power adapter, power input (DC5-60V & AC18-36V). With its multi-purpose design, it can also be used for DIN-Rail or wall-mounted. It is an ideal unit for IP surveillance, traffic monitoring and security application in critical environment.
JHA-IFS11C supports 1-port 100Base-X SFP slot and 1 port 10/100Base-T(X). It supports CE, FCC, RoHS standard, rugged high-strength metal case. The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X). The -40 - 85℃ operating temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Tính năng
- Support 1 100Base-X SFP slot and 1 10/100Base-T(X) Ethernet port.
- Designed to fit into space-limited camera enclosure, can also be used as DIN-Rail mounted or panel mounted unit.
- Support Link Fault Pass Through(LFP), converter mode and switch mode.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC5-60V and AC18-36V redundancy power.
- IP40 Rated aluminum alloy housing, -40-85°C operating temperature.
Thông số kỹ thuật
|
Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Switching Performance |
Forwarding Rate: 0.446Mpps
Transmission Mode: Store and Forward
Packet Buffer Size: 1M
System Exchange Bandwidth: 0.6Gbps
MAC Table Size: 1K
Delay Time: < 3μs |
|
Ethernet Port |
10/100Base-T(X) auto speed control, full/half duplex and MDI/MDI-X auto-adaptation |
|
Fiber Port |
100Base-X SFP slot |
|
LED Indicator |
Power Indicator: PWR
Fiber Port Indicator: SD
Fiber Signal Indicator: LK / ACT |
|
DIP Switch |
Link Fault Pass Through(LFP) Converter Mode, Switch Mode |
|
Power Supply |
Input Voltage: DC5-60V and AC18-36V
Connector: 3 bit 5.08mm removable terminal block
Full Load: <2W
Protection Mechanism: overload protection, reverse connection protection, redundancy protection |
|
Mechanical Structure |
Shell: IP40 protection, aluminum-alloy housing
Dimension: 59*36*49mm( L*W*H )
Weight: 150gInstallation: DIN-Rail mounting, wall mounting |
|
Operating Environment |
Operating Temperature: -40 - 75°C
Storage Temperature: -40 - 85°C
Ambient Relative Humidity: 5% - 95% (non-condensing) |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)
EN61000-4-3 (R/S), Level 3 at 10V/m
EN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port)
EN61000-4-5 (Surge), Level 4 at 4kV
EN61000-4-6 (CS), Level 3 at 10V/m
EN61000-4-8, Level 5 at 100A/m
Shock:IEC 60068-2-27
Free Fall:IEC 60068-2-32
Vibration:IEC 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
