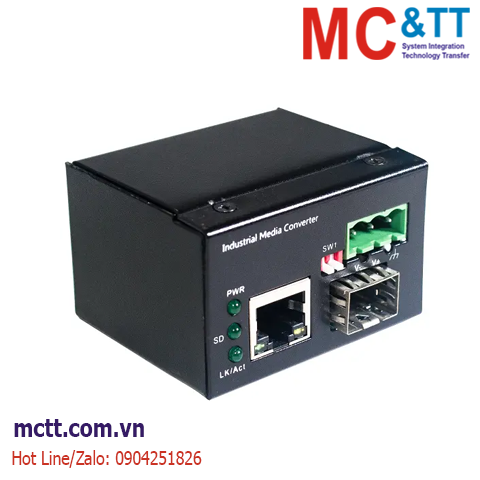

Bộ chuyển đổi quang điện công nghiệp 1 cổng Gigabit Ethernet sang 1 cổng Gigabit SFP JHA Tech JHA-IGS11C
JHA-IGS11C is a true mini, rugged industrial media converter, it is designed for where critical but space limited outdoor camera enclosure. It can be powered by wide range of VDC or external DC power adapter, power input (DC10-55V ). With its multi-purpose design, it can also be used for Din-Rail or wall-mounted. It is an ideal unit for IP surveillance, traffic monitoring and security application in critical environment.
JHA-IGS11C supports 1-port 1000Base-X SFP slot and 1 port 10/100/1000Base-T(X). It supports CE, FCC, RoHS standard, rugged high-strength metal case. The switch support IEEE802.3, IEEE802.3u, IEEE802.3x with 10/100Base-T(X). The -40-85℃ working temperature can meet all kinds of industrial environment requirement, providing reliable and economic solution for your industrial Ethernet network.
Tính năng
- Support 1 1000Base-X SFP slot and 1 10/100/1000Base-T(X) Ethernet port.
- Support IEEE802.3, IEEE802.3u, IEEE802.3x.
- Plug-and-play, 10/100/1000Base-T(X), full/half duplex, MDI/MDI-X auto-adaptation.
- Industrial chip design, 15kV ESD protection, 8kV surge protection.
- DC10-58V redundancy power, reverse polarity protection.
- Industrial grade 4 design, -40-85°C operating temperature.
- IP40 rated aluminum alloy housing, DIN-Rail mounted.
Thông số kỹ thuật
| Protocol Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
|
Flow Control |
IEEE802.3x flow control, back press flow control |
|
Exchange Attribute |
Forwarding Rate: 0.446Mpps
Transmission Mode: Store and Forward
Packet Buffer Size: 1M
System Exchange Bandwidth: 0.6Gbps
MAC Table Size: 1K
Delay Time: < 3μs |
|
Ethernet Port |
10/100/1000Base-T(X) auto speed control, Half/full duplex and MDI/MDI-X auto detect |
|
Fiber Port |
1000Base-X SFP slot |
|
LED Indicator |
Power Indicator: PWR
Fiber Port Indicator: SD
Fiber Signal Indicator: LK / ACT |
|
DIP Switch |
1.Jumbo Packet2.Link Fault Pass Through(LFP) |
|
Power Supply |
Input Voltage: DC10-55V
Connector: 3 bit 5.08mm Removable terminal block
Full Load: <2W
Protection Mechanism: Overload Protection / Reverse Connection Protection / Redundancy Protection |
|
Mechanical Structure |
Shell: IP40 protection, Aluminum-alloy shell
Dimension: 59*36*49mm( L*W*H )
Weight: 150g
Installation: DIN-rail mounting, wall mounting |
|
Working Environment |
Operating Temperature: -40 to 85°C
Storage Temperature: -40 to 85°C
Ambient Relative Humidity: 5% to 95% (non-condensing) |
|
Industry Standards |
EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS:EN61000-4-2 (ESD), Level 4 at 15kV(Air), 8kV(Contact)
EN61000-4-3 (R/S), Level 3 at 10V/m
EN61000-4-4 (EFT), Level 4 at 4kV(Power Port), 2kV(Date Port)
EN61000-4-5 (Surge), Level 4 at 4kV
EN61000-4-6 (CS), Level 3 at 10V/m
EN61000-4-8, Level 5 at 100A/m
Shock:IEC 60068-2-27
Free Fall:IEC 60068-2-32
Vibration:IEC 60068-2-6 |
|
Certification |
CE, FCC, RoHS |
|
MTBF |
>100,000 Hours |
Thông tin đặt hàng
|
Model No. |
Description of Goods |
| JHA-IFS11C |
Industrial Media Converter, 1*100Base-X SFP Slot + 1*10/100Base-T(X) RJ45 Port, DIN-Rail, DC10-55V |
|
JHA-IF11C |
Industrial Media Converter, 1*100Base-FX Fiber Port + 1*10/100Base-T(X) RJ45 Port, SC, Multimode, Dual Fiber, 2Km, DIN-Rail, DC10-55V |
|
JHA-IF11C-20 |
Industrial Media Converter, 1*100Base-FX Fiber Port + 1*10/100Base-T(X) RJ45 Port, SC, Single Mode, Dual Fiber, 20Km, DIN-Rail, DC10-55V |
|
JHA-IF11CW-20 |
Industrial Media Converter, 1*100Base-FX Fiber Port + 1*10/100Base-T(X) RJ45 Port, SC, Single Mode, Single Fiber, 20Km, DIN-Rail, DC10-55V |
|
JHA-IGS11C |
Industrial Media Converter, 1*1000Base-X SFP Slot + 1*100/1000Base-T(X) RJ45 Port, DIN-Rail, DC10-55V |
|
JHA-IG11C |
Industrial Media Converter, 1*1000Base-FX Fiber Port + 1*100/1000Base-T(X) RJ45 Port, SC, Multimode, Dual Fiber, 2Km, DIN-Rail,DC10-55V |
|
JHA-IG11C-20 |
Industrial Media Converter, 1*1000Base-FX Fiber Port + 1*100/1000Base-T(X) RJ45 Port, SC, Single Mode, Dual Fiber, 20Km, DIN-Rail,DC10-55V |
Tài liệu
Datasheet
