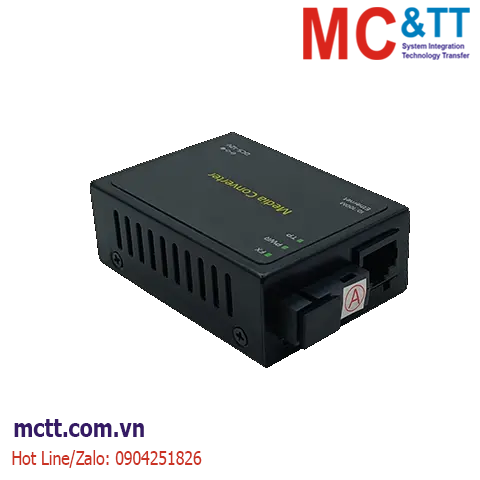

Bộ chuyển đổi quang điện 1 cổng Ethernet sang cổng quang JHA Tech JHA-F11MW
JHA-F11M series is a miniature 10/100M self-adaptive Fast Ethernet fiber optic transceiver, with one 100M optical port and one 10/100Base-TX self-adaptive Ethernet RJ45 interface. The product design complies with the Ethernet standard, adding lightning protection and anti-static protection measures, a wide range of operating temperature from -20°C to +70°C, and stable and reliable performance. The device can be widely used in special environments, and is easy to be implanted inside the device, as well as special scenarios where the installation environment is small. And reliable performance, to ensure stable transmission.
Tính năng
Thông số kỹ thuật
|
Operating standards |
IEEE802.3u、10/100Base-TX and 100Base-FX |
|
MAC addresses table |
1K |
|
Data buffer |
1M |
|
Connectors: UTP Connector |
RJ-45,10/100Mbps;Fiber Connector: SC 100Mbps |
|
Cable |
UTP: Cat. 5 UTP cable (the max distance up to100m)
Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm（the max distance up to 90km） |
|
Flow Control |
Full Duplex: IEEE802.3x
Half Duplex: back pressure |
|
LED |
Power, FX, TP. |
|
Power Requirement |
DC 5~12V |
|
Ambient Temperature |
0 ～ 70℃ |
|
Humidity |
5 ～ 90% |
|
Size |
69×50×24mm |
|
LED Indicator |
PWR:power supply
FX LINK/ACT:optical fiber connection/action
TP:network port full duplex/half duplex mode
TX LINK/ACT:electrical port connection/action
100:electrical port 100/10M transmission rate)
FX:with/without optical signal |
Thông tin đặt hàng
|
Model No. |
Description |
|
JHA-F11MW-20A |
10/100M Single-mode, Single Fiber, 20Km, 1310nm, SC/ST/FC/LC Connector |
|
JHA-F11MW-20B |
10/100M Single-mode, Single Fiber, 20Km, 1550nm, SC/ST/FC/LC Connector |
