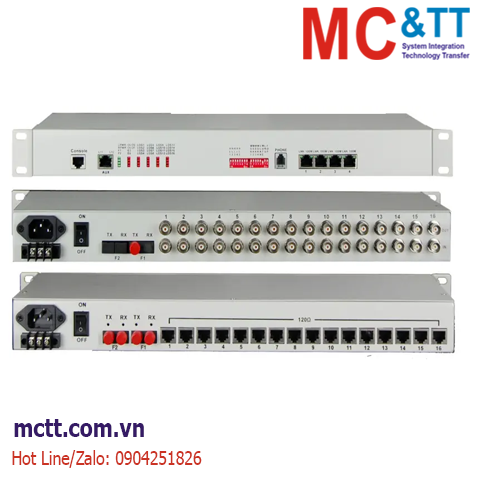

Bộ chuyển đổi 4 cổng Ethernet + 16 cổng E1 sang quang JHA Tech JHA-CPE16WF4

Bộ chuyển đổi 4 cổng Ethernet + 16 cổng E1 sang quang JHA Tech JHA-CPE16WF4

This series of equipment is the company developed the PDH fiber transmission dedicated VLSI developed on the basis of point to point optical transmission equipment. Provide 1-16 E1 interfaces, primary and backup fiber optical interface connector, 1-4 physical isolation 10/100M Fast Ethernet interface (independent four-wire speed 100M,total bandwidth is 4*100M), as well as two business expansion interface. 2 Extended service interface can be used as RS232 / RS485 / RS422 asynchronous data , the application is very flexible. Optional one digital service telephone, the application is very flexible. With a sound alarm function, the whole stable, reliable, low power consumption, high integration, small size.

Tính năng

• Based on self-copyright IC
• 1-4 physical isolation 10/100M Fast Ethernet interface , every FE Ethernet independent wire speed is 100M,total bandwidth is 4*100M;
• Provide Console manage interface (RS232)
• Provide two fiber interface 1+1 protect（APS）function
• Ethernet interface rate is 10/100M, half/full duplex Auto-Nego
• Ethernet package support jumbo frames,up to 10240 byte
• E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
• Uses standard 2 wire telephone (non-telephone handles) set as engineering order-wire hotline(optional)
• When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
• The local device can view the remote device working condition
• Provide command the remote interface Loop Back, support local E1 Loop Back function, support E1 LOS and AIS alarm ,ease line maintenance
• The transmission distance is up to 2-100Km without interruption
• Support SNMP manager (SNMP agent inside)
• AC 220V, DC-48V, DC24V can be optional
• DC-48V/DC24V power supply polarity detection function, Polarity-Free

Thông số kỹ thuật

♦ Fiber

Multi-mode Fiber

50/125um, 62.5/125um,

Maximum transmission distance: 5Km @ 62.5 / 125um single mode fiber,attenuation (3dbm/km)

Wave Length: 820nm

Transmitting power: -12dBm (Min) ~-9dBm (Max)

Receiver sensitivity: -28dBm (Min)

Link budget: 16dBm

Single-mode Fiber

8/125um, 9/125um

Maximum transmission distance: 40Km

Transmission distance: 40Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length: 1310nm

Transmitting power: -9dBm (Min) ~-8dBm (Max)

Receiver sensitivity: -27dBm (Min)

Link budget: 18dBm

♦ E1 Interface

  Interface Standard: comply with protocol G.703;
 Interface Rate: 2048Kbps±50ppm;
 Interface Code: HDB3;

 E1 Impedance: 75Ω (unbalance), 120Ω (balance);

 Jitter tolerance: In accord with protocol G.742 and G.823

 Allowed Attenuation: 0~6dBm

♦ Ethernet interface (10/100M)

    Interface rate:    10/100 Mbps, half/full duplex auto-negotiation

   Interface Standard:    Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

   Connector: RJ45, support Auto-MDIX

♦ Working environment

Working temperature: -10°C ~ 50°C

Working Humidity: 5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications

Download

Datasheet
