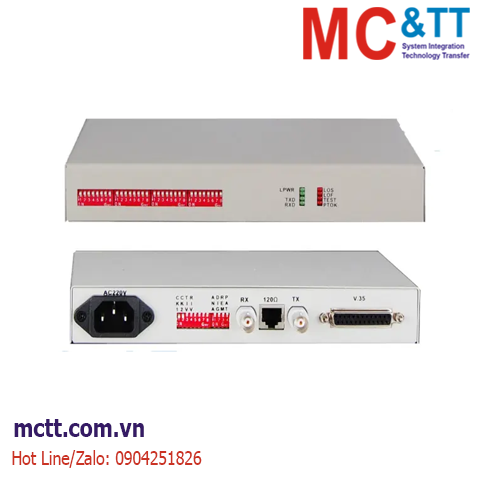

This interface converter provides one E1 interface and one V.35 interface to achieve framed E1 interface transferring to V.35 interface. The data channel rate is 2.048Mbps. The device has inter-set loop test function to facilitate the project launching and daily maintenance.

Tính năng

• Based on self -copyright  IC
• Have indicator  when the device is power-off or E1 line is broken or lose signal;
• The local device can forced the remote device rate follow it(valid when framed )
• The hardware realizes any one of 31 time slot any time slot optional (valid when framed)
• Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
• After strict testing and practical verification system, completely comply with protocol ITU-T V.35, G.703, G.704
• Have three Loop Back Mode: E1 interface Loop Back (ANA)、V.35 interface Loop Back(DIG)、Command the remote V.35 interface Loop Back(REM)
• Have pseudo random code test function, easily line opened, can be used as a 2M BER Tester
• V.35 interface supports hot-plug, supports DTE or DCE device interconnection
• Provide 3 clock types: Internal clock, External clock,E1 line clock;
• AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free

Thông số kỹ thuật

♦ E1 Interface

Interface Standard: comply with protocol G.703;
Interface Rate: n*64Kbps±50ppm;
Interface Code: HDB3;

E1 Impedance: 75Ω (unbalance), 120Ω (balance);

Jitter tolerance: In accord with protocol G.742 and G.823

Allowed Attenuation: 0~6dBm

♦ V.35 interface

Interface rate:     n*64Kbps

Interface Standard: Compatible with V.35 Standard

Connector: DB25

Connect Mode: DCE

Clock Type: G.703 restored clock, Internal clock

♦ Working environment

Working temperature:    -10°C ~ 50°C

Working Humidity:    5%~95 % (no condensation)

Storage temperature: -40°C ~ 80°C

Storage Humidity: 5%~95 % (no condensation)

Specifications
