Card ISA 32 kênh đầu vào tương tự AI 12 bits, 10 kS/s ICP DAS ISO-813/S CR
Features
- Built-in DC/DC converter with 3000 VDC isolation
- 32-channel AI
- 12-bit A/D converter(ADS-774)
- 3000 Vrms photo-isolation protection
- Maximum 10 k 12-bits sampling rate
- Programmable Gain : 1, 2, 4, 8, 16
- AI range :
- Bipolar : ±10 V ,±V , ±2.5 V , ±1.25 V, ±0.625 V, ±0.3125 V
- Unipolar : 0 ~ 10 V , 0 ~ 5 V , 0 ~ 2.5 V , 0 ~ 1.25 V, 0 ~ 0.625 V
- A/D trigger mode : Software trigger
- A/D Transfer mode : Polling
Introduction

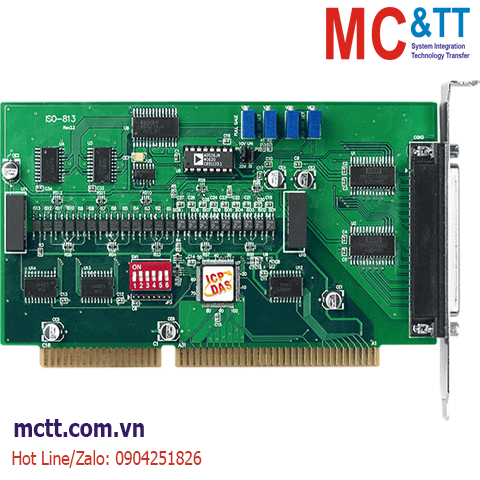

The ISO-813 is a bus-type isolated 12-bits A/D board for PC/AT compatible computers. It's isolation range is increased to 3000 VDC and extend the application field to real industrial application. It is backward compatible to 813 families. Comparing to PCL-813 or ACL-813. The ISO-813 features a 12-bits analog-to-digital converter ,32 AI channels.
Applications
- Data acquisition
- Waveform analysis
- Harsh environment operation
- Signal isolation
Click to view the Introduction of https://mctt.vn/isa-icp-das
Specifications
| Hardware |
| Connector |
Female DB37 x 1 |
| Analog Input |
| Channels |
32 single-ended |
| Range |
Gain: 0.5,1, 2, 4, 8, 16
Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625V
Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V, 0 ~ 0.625 V, 0 ~ 0.3125 V |
| Resolution |
12-bit |
| Accuracy |
0.01% of FSR ±1 LSB @ 25 °C, ± 10 V |
| Sampling Rate |
10 kS/s. Max. |
| Input Impedance |
10 MΩ/6 Pf |
| Overvoltage Protection |
Continuous ±35 Vp-p |
| Zero Drift |
±25 ppm/°C of FSR |
| Trigger Mode |
Software |
| Isolation |
3000 Vrms (Bus Type) |
| Data Transfer |
Polling |
| PC Bus |
| Type |
ISA |
| Data Bus |
8-bit |
| Power |
| Consumption |
850 mA @ +5 V |
| Mechanical |
| Dimensions (mm) |
96 x 174 x 22 (W x L x D) |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-20 ~ +70°C |
| Humidity |
5 ~ 85% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| ISO-813/S CR |
ISA Bus, 32-ch, 12-bit Bus Isolated AI Board (RoHS)
Includes DB-8325 Terminal Board and one CA-3710 D-Sub cable. |
