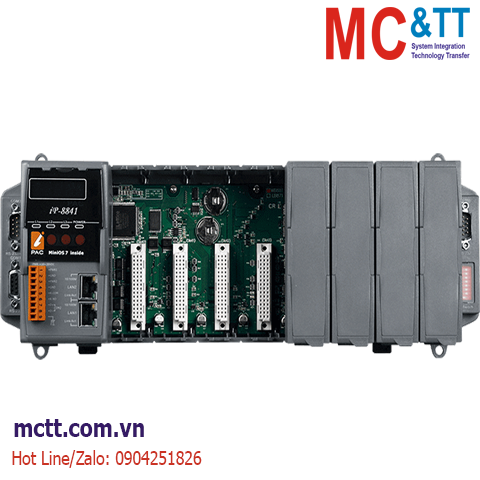

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 + 8 khe cắm module I/O ICP DAS iP-8841 CR
Features
- 80186, 80 MHz CPU
- MiniOS7 Embedded Operating System (DOS-like)
- C language Based Software Development Toolkit
- TCP/IP Library
- Modbus Library
- Various Storage Media
- 512 KB Flash
- 16 KB EEPROM
- microSD (More Details)
- Various Communication Interfaces
- Dual 10/100M Base-TX Ethernet
- 4 Serial Ports (RS-232/485)
- 64-bit Hardware Serial Number
- 8 Slots for I-8K and I-87K Modules
- 5-Digital 7-SEG LED Display
- Programmable LED Indicator
- Redundant Power Inputs
Introduction
iP-8841 is an embedded controller with 64-bit Hardware Serial Number and based on MiniOS7 which is a DOS-like system that developed by ICPDAS Co., LTD. The MiniOS7 system can boot up in a very short time (0.4 ~ 0.8 second). The backplane equipped with eight slots, it supports all the I-8K and I-87K series I/O modules such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc, and there four serial COM ports, including RS-232 and RS-485 ports for remote data acquisition and control applications, environmental monitoring, power management and factory automation. The iP-8841 equipped with two ethernat ports fot network. We have designed an XServer architecture for simplify the developing process of TCP/IP applications. It is a reliable, opened, expandable, all purpose,and easily to be used library.
The Xserver library include many functions of Ethernet communication. Refer to the demo programs we provided, user can easily finish the remaining funtionalities and greatly shorten the developing time. The iP-8841 is designed for industrial monitoring,measurement and controlling. It has redundant power inputs with 1 kV isolation from noise and surges,and a wide range of operating temperature (-25 ~ +75 °C). It can work in the harsh and rough environment.
Application
https://mctt.vn/ip-8000-i-8000-icp-das
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
768 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion |
4 GB microSD card (up to 32 GB) |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
1 x Power, 3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
8 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| Buzzer |
Yes |
| DIP Switch |
8-bit for address |
| Push Button |
4 |
| Ethernet |
| Ports |
2 x RJ-45, 10/100 Base-TX |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
7.2 W |
| Mechanical |
| Dimensions (mm) |
355 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iP-8841 CR |
8-slot Ethernet with 80186-80 CPU and MiniOS7 (RoHS) |
