Bộ lập trình nhúng MiniOS7 PAC với CPU 80188-40 + 8 khe cắm module I/O ICP DAS I-8831 CR

Chia sẻ:
Mã sản phẩm: I-8831
Thương hiệu: ICP DAS
Tình trạng:

8-slot Ethernet Embedded Controller with 80188-40 CPU and MiniOS7 (Blue Cover)

Liên hệ
Mô tả

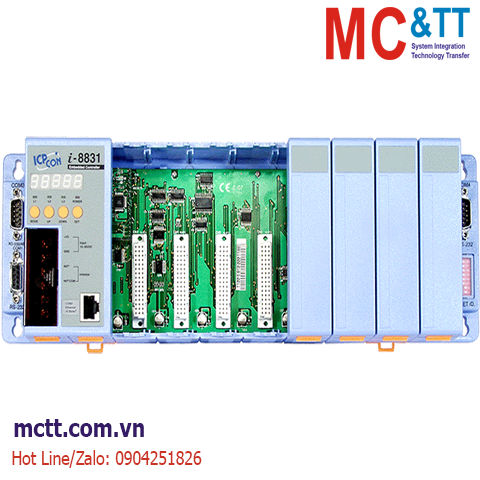

Bộ lập trình nhúng MiniOS7 PAC với CPU 80188-40 + 8 khe cắm module I/O ICP DAS I-8831 CR

Features

• 80188 or compatible (8-bit and 40 MHz)
• MiniOS7 Embedded Operating System (DOS-like)
• 64-bit Hardware Serial Number for Software Protection
• Built-in Watchdog
• 7-Segment display x 5
• Serial Port x 3 (RS-232 or RS-485 communication Interface)
• Input Protection Circuity
• 8 Slots for I-8K and I-87K Modules
• Operating Temperature: -25 ~ +75 °C

Introduction

The I-8831 is an Ethernet embedded controllers with 8 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4 ~ 0.8 second). It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.

To simplify the TCP/IP program developing process, we designed a XServer architecture. It is a reliable, opened, expandable, all purposed,and easily to be used library. The Xserver implements 90% functionalities of Ethernet communication. Refer the rich demo programs we provided, software engineer can easily finish the 10% remaining funtionalities and greatly shorten the developing time.

The I-8831 is equipped with an ethernet port, and their backplane is equipped with 3 serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation.

By using S-256 (256 KBytes) or S-512 (512 KBytes)battery backup SRAM, they provide data logger storage function. (S256 and S512 are optional accessories.)

Application

https://mctt.vn/ip-8000-i-8000-icp-das

Specifications

Software
OS MiniOS7
Development C Language
CPU Module
CPU 80188 or compatible, 8-bit and 40 MHz
64-bit Hardware Serial Number Yes
EEPROM 2 KB
Flash 512 KB
NVRAM 31 Bytes
SRAM 512 KB
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Yes
Display
Type 5 x Digit 7 Segment LED Display
LED Indicators
Status 1 x Power, 3 x Programmable
I/O Expansion
I/O Type I-8K, I-87K series
Slots 8
COM Ports
Ports 2 x RS-232, 1 x RS-232/RS-485
HMI
DIP Switch 8-bit for address
Push Button 4
Ethernet
Ports 1 x RJ-45, 10Base NE2000 compatible
Power
Input Range +10 ~ 30 VDC
Consumption 5.1 W
Mechanical
Dimensions (mm) 355 x 110 x 77 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +85 °C
Humidity 5 ~ 95 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-8831     CR  8-slot Ethernet Embedded Controller with 80188-40 CPU and MiniOS7 (Blue Cover) (RoHS)
