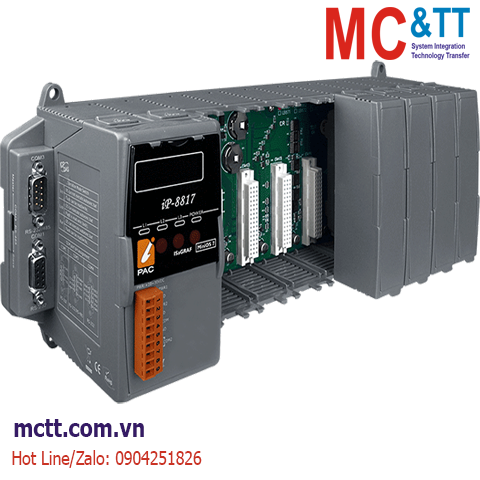

Bộ lập trình nhúng ISaGRAF PAC CPU 80186-80 + MiniOS7 + 8 khe cắm module I/O ICP DAS iP-8817 CR
Features
• 80186, 80 MHz CPU
• MiniOS7 Inside
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• 512 KB Battery Backup SRAM to Retain Data
• 64-bit Hardware Serial Number
• 8 Hot-Swap Slots for I-87K High Profile I/O Modules
• 4 Serial Ports (RS-232/485)
• Redundant Power Inputs
Introduction
ISaGRAF iPAC-8000 Series (iP-8417/8817/8447/8847) is the ISaGRAF SoftLogic PAC from ICP DAS.
Each iP-8xx7 is equipped with an 80186, 80 MHz CPU running a MiniOS7 operating system, a variety of input/output ports (dual 10/100 Base-TX Ethernet Ports for iP-8x47, one RS-232/485 port, one RS-485 port, and two RS-232 ports) and a range of I/O slots (4/8) that can be used to integrate high-performance parallel I/O modules (high profile I-8K series) or serial I/O modules (high profile I-87K series).
Users can also choose RS-485 Remote I/O modules (I-7000 series) or expansion units (RU-87Pn or I-87Kn) plugged with high profile I-87K serial I/O modules. Compared to I-8xx7, iP-8xx7 series is faster at all!
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
Application
Specifications
| Software |
| OS |
MiniOS7 |
| Protocol |
• NET ID
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU remote I/O
• FRnet I/O
• SMS
• CAN/CANopen |
| Development |
Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module |
| CPU |
80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion |
Yes, but ISaGRAF does not support |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
8 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| DIP Switch |
8-bit for address |
| Push Button |
4 |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
7.2 W |
| Mechanical |
| Dimensions (mm) |
355 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iP-8817 CR |
8-slot ISaGRAF Based RS-485 PAC with 80186-80 CPU and MiniOS7 (RoHS) |
