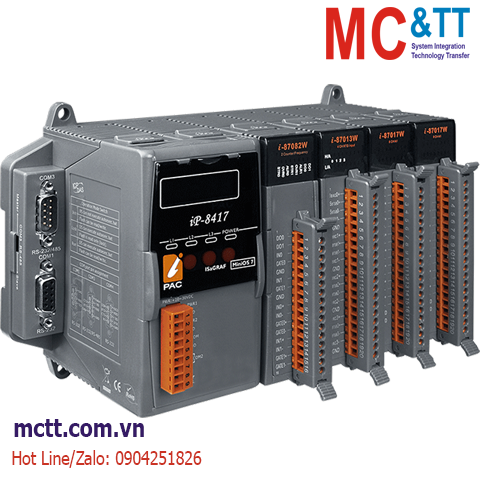

Bộ lập trình nhúng ISaGRAF PAC CPU 80186-80 + MiniOS7 + 4 khe cắm module I/O ICP DAS iP-8417 CR

Chia sẻ:
Mã sản phẩm: iP-8417
Thương hiệu: ICP DAS
Tình trạng:

4-slot ISaGRAF Based RS-485 PAC with 80186-80 CPU and MiniOS7

Liên hệ
Mô tả

Bộ lập trình nhúng ISaGRAF PAC CPU 80186-80 + MiniOS7 + 4 khe cắm module I/O ICP DAS iP-8417 CR

Features

• 80186, 80 MHz CPU
• MiniOS7 Inside
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• 512 KB Battery Backup SRAM to Retain Data
• 64-bit Hardware Serial Number
• 4 Hot-Swap Slots for I-87K High Profile I/O Modules
• 4 Serial Ports (RS-232/485)
• Redundant Power Inputs

Introduction

ISaGRAF iPAC-8000 Series (iP-8417/8817/8447/8847) is the ISaGRAF SoftLogic PAC from ICP DAS.

Each iP-8xx7 is equipped with an 80186, 80 MHz CPU running a MiniOS7 operating system, a variety of input/output ports (dual 10/100 Base-TX Ethernet Ports for iP-8x47, one RS-232/485 port, one RS-485 port, and two RS-232 ports) and a range of I/O slots (4/8) that can be used to integrate high-performance parallel I/O modules (high profile I-8K series) or serial I/O modules (high profile I-87K series).

Users can also choose RS-485 Remote I/O modules (I-7000 series) or expansion units (RU-87Pn or I-87Kn) plugged with high profile I-87K serial I/O modules. Compared to I-8xx7, iP-8xx7 series is faster at all!

Notice:

ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.

Application

Specifications

Software
OS MiniOS7
Protocol • NET ID
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU remote I/O
• FRnet I/O
• SMS
• CAN/CANopen
Development Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
CPU Module
CPU 80186 or compatible, 16-bit and 80 MHz
64-bit Hardware Serial Number Yes
EEPROM 16 KB
Flash 512 KB
NVRAM 31 Bytes
SRAM 512 KB SRAM, 512 KB Dual battery backup SRAM
Storage Expansion Yes, but ISaGRAF does not support
Real Time Clock Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer Yes
Display
Type 5 x Digit 7 Segment LED Display
LED Indicators
Status 3 x Programmable
I/O Expansion
I/O Type I-8K, I-87K series
Slots 4
COM Ports
Ports 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485
HMI
DIP Switch 8-bit for address
Push Button 4
Power
Input Range +10 ~ 30 VDC (1 kV Isolated )
Consumption 6.7 W
Mechanical
Dimensions (mm) 231 x 132 x 111 (W x L x H)
Installation DIN-Rail, Wall mounting
Environment
Operating Temperature -25 ~ +75°C
Storage Temperature -30 ~ +80°C
Humidity 10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iP-8417     CR  4-slot ISaGRAF Based RS-485 PAC with 80186-80 CPU and MiniOS7 (RoHS)
