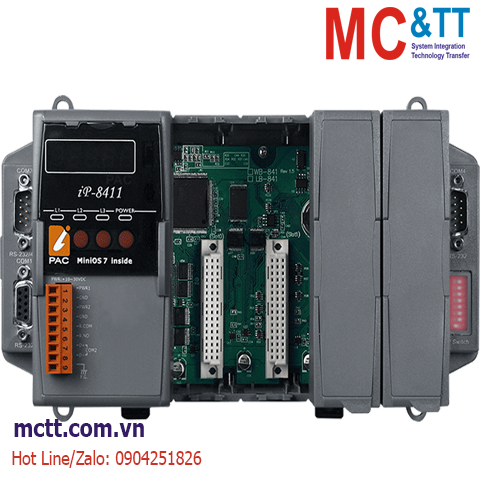

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 + 4 khe cắm module I/O ICP DAS iP-8411 CR
Features
- 80186, 80 MHz CPU
- MiniOS7 Embedded Operating System (DOS-like)
- C language Based Software Development Toolkit
- TCP/IP Library
- Modbus Library
- Various Storage Media
- 512 KB Flash
- 16 KB EEPROM
- microSD (More Details)
- 4 Serial Ports (RS-232/485)
- 64-bit Hardware Serial Number
- 4 Slots for I-8K and I-87K Modules
- 5-Digital 7-SEG LED Display
- Programmable LED Indicator
- Redundant Power Inputs
Introduction
iP-8411 is an embedded controller with 64-bit Hardware Serial Number and based on MiniOS7 which is a DOS-like system that developed by ICPDAS Co., LTD. The MiniOS7 system can boot up in a very short time (0.4 ~ 0.8 second). The backplane equipped with four slots, it supports all the I-8K and I-87K series I/O modules such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc, and there four serial COM ports, including RS-232 and RS-485 ports for remote data acquisition and control applications, environmental monitoring, power management and factory automation.
The iP-8411 is designed for industrial monitoring,measurement and controlling. It has redundant power inputs with 1 kV isolation from noise and surges,and a wide range of operating temperature (-25 ~ +75 °C). It can work in the harsh and rough environment.
Application
https://mctt.vn/ip-8000-i-8000-icp-das
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
16 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB SRAM, 512 KB Dual battery backup SRAM |
| Storage Expansion |
4 GB microSD card (up to 32 GB) |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
1 x Power, 3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
4 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI |
| DIP Switch |
8-bit for address |
| Push Button |
4 |
| Power |
| Input Range |
+10 ~ 30 VDC (1 kV Isolated ) |
| Consumption |
6.7 W |
| Mechanical |
| Dimensions (mm) |
231 x 132 x 111 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iP-8411 CR |
4-slot Serial PAC with 80186-80 CPU and MiniOS7 (RoHS) |
