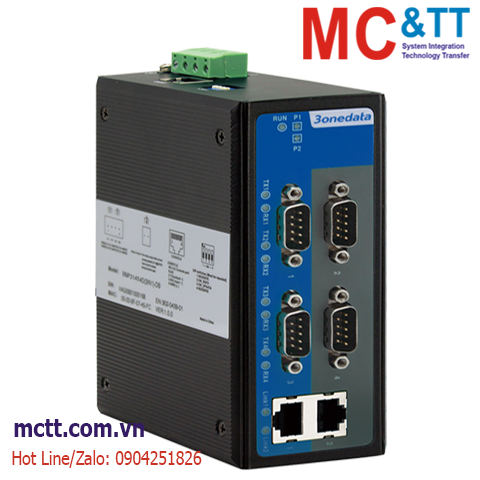

Bộ chuyển đổi 4 cổng RS-232/485/422 sang 2 cổng Ethernet 3Onedata INP314T-4DI(3IN1)-DB-2P(12-48VDC)

Chia sẻ:
Mã sản phẩm: INP314T-4DI(3IN1)-DB-2P(12-48VDC)
Thương hiệu: 3onedata
Tình trạng: Còn hàng

4-port RS-232/485/422 to 2-port 100M Ethernet Serial Device Server

Liên hệ
Mô tả

INP314T-4DI(3IN1)-DB-2P(12-48VDC) là bộ chuyển đổi tín hiệu 4 cổng RS-232/485/422 sang 2 cổng Ethernet – Serial device server của hãng 3Onedata, được phân phối và bảo hành chính hãng bởi MC&TT tại thị trường Việt Nam.

INP314T-4DI(3IN1)-DB-2P(12-48VDC) hỗ trợ nhiều giao thức mạng, chẳng hạn như giao thức TCP, UDP, TELNET, ARP, ICMP, HTTP, DNS và DHCP. Nó cũng sở hữu các chức năng quản lý hoàn chỉnh, bao gồm Kiểm soát truy cập, Cấu hình nhanh, Nâng cấp trực tuyến, v.v. Mỗi cổng nối tiếp hỗ trợ 4 kết nối phiên TCP hoặc UDP và nó cũng hỗ trợ các chế độ vận hành RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast và chế độ truy cập WEB và SSHD.

Hơn nữa, công cụ cấu hình quản lý được cung cấp dựa trên nền tảng Windows có thể hướng dẫn người dùng quản lý và định cấu hình thiết bị, đạt được kết nối mạng thiết bị nối tiếp ngay lập tức thông qua các cài đặt đơn giản. Nó có thể cung cấp cho người dùng trải nghiệm tốt với thiết kế giao diện hệ thống quản lý mạng thân thiện, thao tác đơn giản và thuận tiện.

Công tắc DIP có thể khôi phục mặc định ban đầu của thiết bị. Phần cứng sử dụng thiết kế không quạt, tiêu thụ điện năng thấp, nhiệt độ và điện áp rộng và đã vượt qua các thử nghiệm tiêu chuẩn công nghiệp nghiêm ngặt, có thể phù hợp với môi trường cảnh công nghiệp với các yêu cầu khắc nghiệt đối với EMC. Sản phẩm được thiết theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, vi xử lý, máy tính nhúng…vv. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông minh, hệ thống kiểm soát an ninh,…

Tính năng

  • Support 4 3IN1 serial port with isolation to 2 10/100Base-T(X) self-adaptive Ethernet interface
  • Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
  • Support 12~48VDC wide voltage input
  • Support -40~75℃ wide temperature operation

Thông số kỹ thuật

Ethernet Standard: 10Base-T, 100Base-TX
Protocol: TCP, UDP, ARP, HTTP, TELNET, ICMP, DHCP, DNS
Rate: 10/100M Automatic Flow Control, MDI/MDI-X Autotunning
Interface quantity: 2
Interface form: RJ45
Duplex mode: Self-adaptive Full/Half Duplex Mode
Operating mode: 4 sessions, support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang and UDP Multicast operating modes
Serial Port Standard: EIA RS-232C, RS-485, RS-422
Quantity of serial port: 4 3IN1 serial ports
RS-232 signal: RXD, GND, TXD
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300-921600bps
Data bit: 7bit, 8bit
Parity bit: None, Even, Odd, Space, Mark
Stop bit: 1bit, 2bit
Interface form: 3IN1 serial port, DB9 male;
Directional control: RS-485 direction adopts Automatic Data Direction Control technology
Load capacity: RS-485/422 end supports 32 points polling (customizable 128 points)
Electromagnetic isolation strength: 2KV
Configuration WEB configuration management, TELNET configuration, Windows configuration tool
Security Classification of User Permissions, IP address filtering, MAC address filtering, WEB Console, TELNET Console
Indicator Power indicator, Running indicator, Ethernet port indicator, Serial port transmission and receiving data indicator
Power Supply

12~48VDC, dual power supply redundancy
Power supply nonpolarity

Power Consumption No-load: 2.59W@48VDC
Full-load: 2.93W@48VDC
Environmental Limit Operating temperature range: -40~75℃

Storage temperature range: -40~85℃

Relative humidity: 5%~95%(no condensation)

Physical Characteristic

Housing: IP40 protection, metal
Installation: DIN-Rail mounting

Dimension (W x H x D): 53mm×138mm×110mm
Weight: 640g

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient), Level 3
Power supply: ±2kV
Signal: ±1kV

IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Signal: common mode ±2kV, differential mode ±1kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Certification CE, FCC, RoHS

Thông tin đặt hàng

Available Models 100M Copper port

3IN1 (RS-232/485/422) with Isolation

Power Supply
INP314T-4D(3IN1)-DB-2P(12-48VDC) 2 4

12~48VDC, dual power supply redundancy
