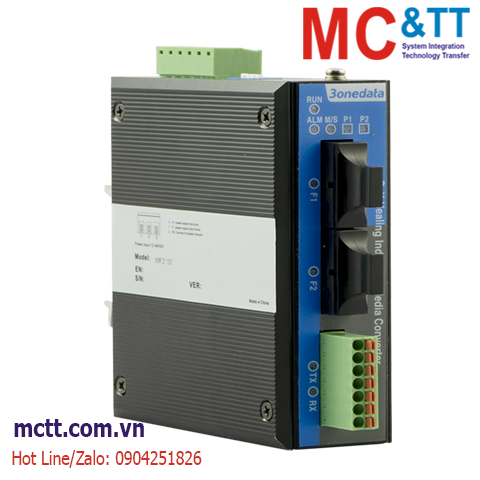

Bộ chuyển đổi 1 cổng RS-232/485/422 sang quang 3onedata IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC)

Chia sẻ:
Mã sản phẩm: IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC)
Thương hiệu: 3onedata
Tình trạng: Còn hàng

2 Fiber Ports +1 RS-232/485/422 Serial to Fiber Modem

Liên hệ
Mô tả

Bộ chuyển đổi 1 cổng RS-232/485/422 sang quang 3onedata IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC)

IMF2100 series chuyển đổi tín hiệu cổng nối tiếp RS-232/485/422 thành tín hiệu quang và cung cấp cho người dùng cổng nối tiếp RS-232/485/422 để thực hiện truyền dẫn đầu cuối trong suốt. IMF2100 cung cấp 1 hoặc 2 cổng sợi quang với chức năng mạng vòng, 1 cổng nối tiếp RS-232/485/422 và nhiều giải pháp nguồn tùy chọn như 85~265VAC, 110~370VDC hoặc 12-48VDC (nguồn điện đơn/kép).

Công tắc DIP có thể thực hiện các chức năng như tùy chọn Master/Slave, hỗ trợ điện trở đầu cuối RS-485, cảnh báo chuyển tiếp khi mất điện và ngắt kết nối sợi quang (lưu ý: cảnh báo nguồn điện chỉ dành cho sản phẩm cung cấp điện kép), v.v. khi cáp quang bị ngắt kết nối hoặc nguồn điện kép không thành công, chỉ báo ALM sẽ sáng và gửi cảnh báo, đồng thời thiết bị báo động kết nối với rơle sẽ gửi cảnh báo để khắc phục sự cố nhanh chóng tại hiện trường.

Phần cứng áp dụng thiết kế không quạt, tiêu thụ điện năng thấp, nhiệt độ và điện áp rộng và đã vượt qua các bài kiểm tra tiêu chuẩn công nghiệp nghiêm ngặt, có thể phù hợp với môi trường công nghiệp với các yêu cầu khắc nghiệt đối với EMC. Nó có thể được sử dụng rộng rãi trong các tình huống khác nhau như kiểm soát công nghiệp, kiểm soát quy trình, kiểm soát giao thông và khu dân cư thông minh, và đặc biệt áp dụng cho ngân hàng, điện lực, các phòng ban và hệ thống có yêu cầu đặc biệt liên quan đến môi trường nhiễu điện từ.

Tính năng

  • Support 1/2 fiber ports and 1 RS-232/485/422 serial port with isolation
  • Support 1 relay alarm output for power failure and disconnection of fiber optics
  • Support multiple optional power solutions including 85~265VAC, 110~370VDC or 12-48VDC (single/dual power supply)
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Fiber port

Interface quantity: 1/2 (support ring network)
Fiber port: optional SC/FC/ST interface
Transmission distance:
Multimode: 2km
Single mode: 20/40/60km

Transmission wavelength:
Multimode: 1310nm
Single mode: 1310nm or 1550nm

Serial port Standard: EIA RS-232C, RS-485, RS-422
Serial port: 1 RS-232/485/422 serial port, can’t be used simultaneously
RS-232 signal: RXD, TXD, GND
RS-485 signal: D+, D-, GND
RS-422 signal: T+, T-, GND, R+, R-
Baud rate: 300~115200bps
Data bit: 5bit, 6bit, 7bit, 8bit
Stop bit: 1bit, 1.5bit, 2bit
Check bit: None, Even, Odd, Space, Mark
Interface type: 7-pin 3.81mm pitch terminal block
Direction control: RS-485 adopts automatic data flow control technology
Load capacity: RS-485 supports 32-point polling environment (128-point could be customized)
RS-485 pull up/down resistor: 4.7kΩ
RS-485 terminal resistance: built-in 120Ω, could be controlled by DIP switch
Transmission distance: RS-232 serial port, 15m; RS-485/422 serial port, 1200m
Relay Relay quantity: 1 relay alarm output
Connection method: 6-pin 5.08mm pitch terminal block(relay occupies 2 pins)
Current load: 1A@30VDC, 0.3A@125VAC
Default relay status: normally open
Indicator Power Supply Indicator, Fiber Port Connection Indicator, Master/Slave Indicator, Alarm Indicator, Serial Port Data Receiving Indicator, Serial Port Data Sending Indicator
Power supply

Support four optional power solutions, 12~48VDC (single power supply), 12~48VDC (dual power supply), 110~370VDC or 85~265VAC

Solution 1
Power supply range: 12~48VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 4 pins)
Power supply protection: built-in 2.0A over-current protection and non-polarity
Power supply redundancy: support

Solution 2
Power supply range: 12~48VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
Power supply protection: built-in 2.0A over-current protection and non-polarity

Solution 3
Power supply range: 110~370VDC
Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
Power supply protection: built-in 2.0A over-current protection and non-polarity

Solution 4
Power supply range: 85~265VAC
Connection method: 6-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
Power supply protection: built-in 2.0A over-current protection

Power Consumption No-load: ≤3.0W@24VDC
Full-load: ≤3.4W@24VDC
Environmental Limits

Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95%(no condensation)

Mechanical structure Housing: IP40 protection, metal
Installation: DIN-Rail mounting
Weight: ≤360g
Dimension (W x H x D): 35mm×110mm×95mm
Industrial Standard IEC 60950-1 / EN 60950-1: Safety
EN 55032: Conducted & Radiated Disturbances
IEC 61000-3-2 Harmonic Current Emission
IEC 61000-3-3 Voltage Fluctuation & Flicker
EN 55024
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
Certification CE, FCC, RoHS

Thông tin đặt hàng

  • IMF2100-2F-1DI(3IN1)-TB-2P(12-48VDC)

RS-232/485/422 to 2 port optic fiber converter, 12-48VDC, SC/ST optional
