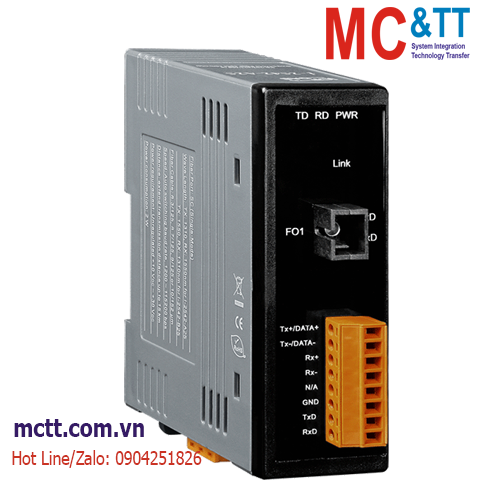

Bộ chuyển đổi RS-232/422/485 sang Quang (Single Fiber, Single Mode, SC, 25KM, TX 1550 nm, RX 1310 nm) ICP DAS I-2542-B25 CR
Feature
- Automatic RS-485 Direction Control
- Avoids lightning strikes and EMI/RFI interference
- ESD Protection for the RS-232/422/485 Data Line
Introduction
The I-2542 series of Single-Strand Fiber Converters supports Wavelength Division Multiplexing (WDM) technology that allows two independent data communication channels to transmit and receive over one standard, single mode, fiber optic line. This not only doubles your existing bandwidth, but also effectively reduces the cost of creating a new fiber optic infrastructure.
The I-2542-A and I-2542-B is a pair.
Application
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232/422/485 |
| Baud Rate |
1200 ~ 115200 bps |
| Fiber |
| Ports |
Single-Mode; SC connector x 1 |
| Fiber Cable |
8.3/125, 8.7/125, 9/125 or 10/125 μm |
| Transmission Distance (LoS) |
25 km (9/125 μm recommended) |
| Wavelength |
TX: 1550, RX: 1310 nm |
| Power |
| Input Range |
+10 VDC ~ +30 VDC (Non-isolated) |
| Consumption |
2 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 89 x 107 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Specification Memo
Important Note: You must purchase both I-2542-A25 and I-2542-B25 since these products work as a pair.
Download
Datasheet
Documents
Ordering Information
| I-2542-B25 CR |
RS-232/422/485 to Single-Mode 25 Km, SC Fiber optic converter, TX 1550 nm, RX 1310 nm (RoHS) |
