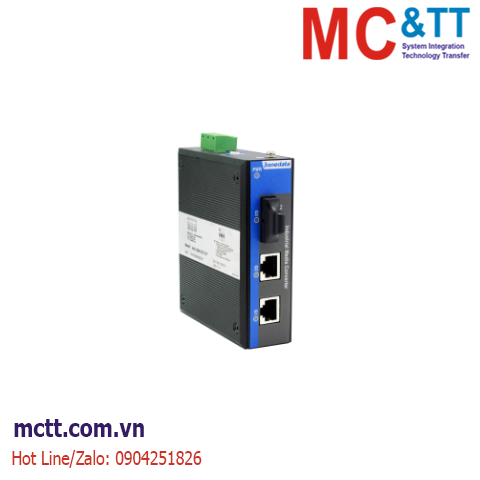

Bộ chuyển đổi quang điện công nghiệp 2 cổng Ethernet sang 1 cổng quang 3onedata IMC100M-2T1F
IMC100M Series are 2/3-port 100M/Gigabit industrial media converter. This series provide 6 products and support a variety of interfaces including 100M copper ports, Gigabit copper ports, 100M fiber ports, Gigabit fiber ports and Gigabit SFP slots. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
The DIP switch could implement functions like local and remote control, and flow control. The 1 copper port + 1 fiber port products support LFP. When the port of the device has link failures, the LFP indicator would be on to send alert, offering quick troubleshooting on the scene. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support up to 2 100M copper ports, 1 100M fiber port, 2 Gigabit copper ports or 1 Gigabit fiber port
- Input voltage: 12~48VDC or 220VAC
- Support -40~75℃ wide operating temperature range
Thông số kỹ thuật
|
Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.3z for 1000Base-X |
|
Interface |
Copper port: 10/100Base-T(X) or 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning
Fiber port: 100Base-FX, 1000Base-X, SFP slot or 1×9 optical module |
|
Indicator |
Interface Indicator, Power Supply Indicator, LFP Indicator (1 copper port and 1 fiber port product only) |
|
Switch Property |
Transmission mode: store and forward
Switch time delay: <10μs
100M Products:
MAC address: 2K
Packet buffer size: 0.75M
Backplane bandwidth: 0.8G
Gigabit Products:
MAC address: 8K
Packet buffer size: 1M
Backplane bandwidth: 14G |
|
Power Supply |
Input voltage: 12~48VDC or 220VAC, DC power nonpolarity |
|
Power Consumption |
No-load: ≤1.47W@24VDC
Full-load: ≤1.95W@24VDC |
|
Working environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, corrugated high-strength metal
Installation: DIN-Rail mounting
Weight: ≤355.6g
Dimension (W x H x D): 35mm×110mm×95mm |
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
Air discharge: ±8kV
Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
Power supply: ±2kV
Signal: ±1kV
IEC 61000-4-5 (Surge), Level 3
Power supply: common mode±2kV, differential mode±1kV
Signal: common mode ±1kV, differential mode ±1kV |
|
Certification |
CE, FCC, RoHS certification |
|
Warranty |
3 years |
Thông tin đặt hàng
|
Available Models |
100M Copper Port |
Gigabit Copper Port |
100M Fiber Port |
Gigabit Fiber Port |
Gigabit SFP |
Power Supply |
|
IMC100M-1T1F |
1 |
— |
1 |
— |
— |
12~48VDC or 220VAC |
|
IMC100M-2T1F |
2 |
— |
1 |
— |
— |
|
IMC100M-1GT1GF |
— |
1 |
— |
1 |
— |
|
IMC100M-1GT1GS |
— |
1 |
— |
— |
1 |
|
IMC100M-2GT1GF |
— |
2 |
— |
1 |
— |
|
IMC100M-2GT1GS |
— |
2 |
— |
— |
1 |
Tài liệu
Datasheet
Quick Installation Guide
