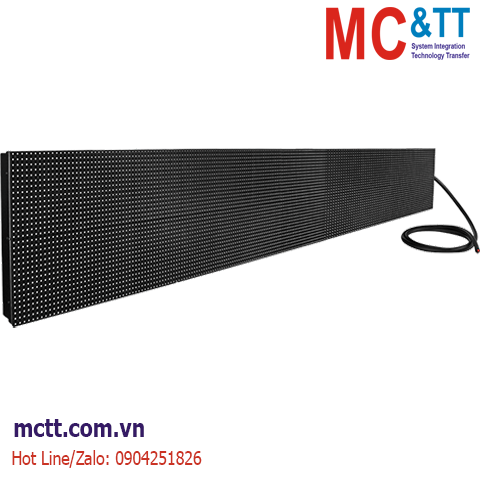

Màn hình LED công nghiệp 24/48 ký tự hai hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-224-IP65 CR

Chia sẻ:
Mã sản phẩm: iKAN-224-IP65
Thương hiệu: ICP DAS
Tình trạng:

Double-row, 24/48-Character Industrial LED Display with Modbus/TCP protocol, IP65

Liên hệ
Mô tả

Màn hình LED công nghiệp 24/48 ký tự hai hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-224-IP65 CR

Features

  • Supports Modbus TCP Slave and Modbus RTU Slave protocols
  • Can be remotely controlled using a smart phone or other mobile device
  • 7 colors, including red, blue, yellow, green, light blue, purple and white
  • Able to store up to 128 messages
  • Web-based User Interface
  • Able to integrate both text and variables in a single message
  • Built-in RTC (Real Time Clock )
  • Supports multiple languages with a text height of 16 cm
  • IP Rating: IP65

Introduction

The iKAN series is a family of industrial LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. It is highly suitable for presenting formatted messages in indoor areas using either Unicode characters, which can be used to display multiple languages, or ASCII characters.

The iKAN-224-IP65 provides a single line of 24 Unicode characters or 48 ASCII characters. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.

The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone.

IP65 Rating

The iKAN IP65 model is totally waterproof and dustproof so it can be installed in dirty, soiled, or semi-outdoor environments, such as eaves, open halls, outdoor canopies, or beneath a sunroof.

Application

https://mctt.vn/ikan-led-icp-das

PLC HMI

The iKAN series display provides 128 message storage space and 168 variable space, which can display the real-time data of PLC in text messages. In addition, PLC Modbus commands give iKAN control to show or hide a message, or to send encoded strings to iKAN for display.



Indoor Air Quality Display

The iKAN device can be use to display indoor air quality indexes from ICP DAS DL sensor modules, including details of the CO, CO2, and PM2.5 levels, the temperature, and the humidity, without requiring any programming skills or knowledge.


Specifications

Display
Size Line: 2
ASCII Characters: 48
Unicode Characters: 24
Real Time Clock Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets 16 x 16 Unicode or 8 x 16 ASCII
Color Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool 40 Coil values, 64 Float values, and 64 Integer values
Message Pool 128 common messages with user-defined priority levels, Up to 20 Unicode characters or 50 ASCII characters
each
COM Ports
Ports 2 × RS-485
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format N81, E81, O81
Protocol Modbus RTU Master/Slave
Ethernet
Ports 2 × RJ-45, 10/100 Base-TX
Protocol Modbus TCP Master/Slave, Max. 8/8 connections
Configuration Web-based User Interface
Power
Input Range 100 ~ 240 VAC
Consumption 0.5 A @ AC 120 V
Mechanical
Casing Aluminum
Dimensions (mm) 1986 x 320 x 49 (W x L x D)
Installation Wall mounting
Weight 12.0 Kg
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -10 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iKAN-224-IP65     CR  Double-row, 24/48-Character Industrial LED Display with Modbus/TCP protocol, IP65 (RoHS)
