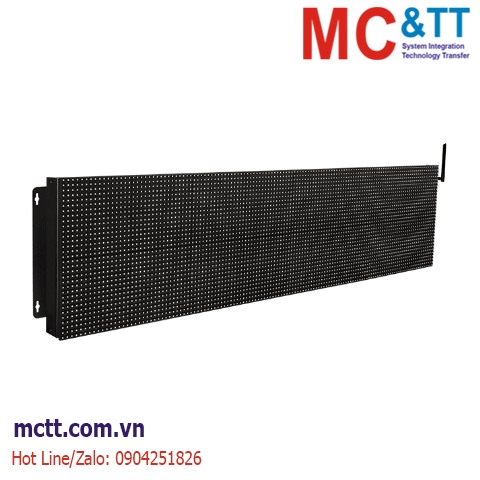

Màn hình LED công nghiệp 16/8 ký tự hai hàng RS-485/Ethernet/Wi-Fi Modbus RTU/TCP ICP DAS iKAN-216-WF CR
The iKAN series is a family of industrial LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. It is highly suitable for presenting formatted messages in indoor areas using either Unicode characters, which can be used to display multiple languages, or ASCII characters.
The iKAN series support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.
The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or Edge, etc., on a PC, mobile device, or smartphone.
Wi-Fi communication eliminates the need for additional network cables, reducing reliance on networks and wiring. This simplifies device installation and wiring complexity, enabling quick device activation while saving time and labor.
Features
- Web-based User Interface
- 7 colors with a text height of 16 cm
- Supports multiple languages
- Can store up to 600 common messages, and priorities can be set
- Integrates both text and variables (up to 420) within a single message
- Can be controlled remotely via PLC, PC, or smartphone
- Supports Modbus TCP Slave and Modbus RTU Slave protocols
- Directly connects to DL/CL series sensor modules and displays real-time monitoring data
- ISM Band 2.4/5 GHz
- Full compatible with IEEE 802.11 a/b/g/n
- Support Wi-Fi Limit-AP and Infrastructure mode
- Support WPA-PSK, WPA2-PSK for Wi-Fi encryption
- Built-in RTC (Real Time Clock )
Application
https://mctt.vn/ikan-led-icp-das
PLC HMI
The iKAN series display provides 600 message storage space and 420 variable space, which can display the real-time data of PLC in text messages. In addition, PLC Modbus commands give iKAN control to show or hide a message, or to send encoded strings to iKAN for display.
Indoor Air Quality Display
The iKAN device can be use to display indoor air quality indexes from ICP DAS DL sensor modules, including details of the CO, CO2, and PM2.5 levels, the temperature, and the humidity, without requiring any programming skills or knowledge.
Specifications
| Display |
| Size |
iKAN-208-WF: Row: 2，ASCII Character: 8/Row，Unicode Character: 4/Row
iKAN-216-WF: Row: 2，ASCII Character: 16/Row，Unicode Character: 8/Row
iKAN-224-WF: Row: 2，ASCII Character: 24/Row，Unicode Character: 12/Row |
| Real Time Clock |
Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets |
16 x 16 Unicode or 8 x 16 ASCII |
| Color |
Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool |
100 Coil values、128 Float values、128 Integer values、64 Double values |
| Message Pool |
600 messages with user-defined priority levels
Up to 20 Unicode characters or 50 ASCII characters each |
| Wi-Fi |
| Transmission Distance (LoS) |
50 m (LOS) |
| Standard |
IEEE 802.11 a/b/g/n |
| Operation Mode |
Infrastructure/Limit-AP |
| Encryption |
Open/WPA/WPA2 |
| Channels |
2.4 GHz: CH1~11
5 GHz: CH36、40、44、48 |
| Antenna |
Omni-Directional
3 dBi @ 2.4 GHz
5.5 dBi @ 5 GHz
Dimension (mm): Ø13x175 |
| Ethernet |
| Ports |
1 × RJ-45, 10/100 Base-TX, Switch Ports |
| Protocol |
8x Modbus TCP Master, 8x Modbus TCP Slave, GCI and HTTP |
| Configuration |
Web-based User Interface |
| COM Ports |
| Ports |
2 × RS-485 |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format |
N81, E81, O81 |
| Protocol |
Modbus RTU Master/Slave |
| Power |
| Input Range |
100 ~ 240 VAC |
| Consumption |
iKAN-208-WF: 0.5 A @ AC 120 V
iKAN-216-WF: 0.6 A @ AC 120 V
iKAN-224-WF: 0.7 A @ AC 120 V |
| Mechanical |
| Casing |
Aluminum |
| Dimensions (mm) |
iKAN-208-WF: 707 x 320 x 53 (W x L x H)
iKAN-216-WF: 1347 x 320 x 53 (W x L x H)
iKAN-224-WF: 1987 x 320 x 53 (W x L x H) |
| Installation |
Wall mounting |
| Weight |
iKAN-208-WF: 4 Kg
iKAN-216-WF: 8 Kg
iKAN-224-WF: 12 Kg |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-10 ~ +75°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iKAN-216-WF CR |
Double-row, 16/8-Character Industrial Wi-Fi LED Display with Modbus/TCP protocol (RoHS) (Asia Only) |
