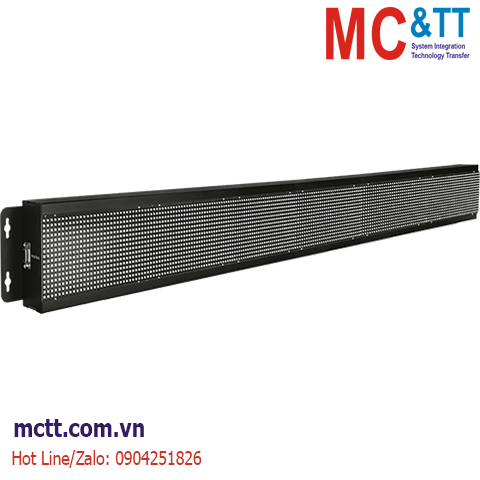

Màn hình LED công nghiệp 12/24 ký tự một hàng giao tiếp Profibus ICP DAS iKAN-124S-PFB CR

Features

  • Web-Based User Interface
  • Embedded PROFIBUS Interface
  • 7-color display with a text height of 16/11.5 cm
  • Able to store up to 128 messages with priority confi guration
  • Supports multiple languages (Glyphs for Arabic, Indian and Thai alphabets are not included)
  • 168 variables available for displaying real-time data in a text message
  • Can be remotely controlled via a PLC, PC or smartphone
  • Supports Modbus TCP/Modbus RTU/CGI protocols
  • Able to display indoor air quality indexes from DL modules without any controller

Introduction

The iKAN series is a family of industrial LED message display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. ASCII characters and Unicode characters, which can be used to display multiple languages, are supported for presenting formatted messages. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.

The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate diff erent degrees of importance of the message, as well as signifi cantly increase the readability of the message in an industrial arena.

Messages can be edited using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone without any limitations related to specifi c control tools or programs. With an open user interface and the ability to display real-time data, the iKAN series of display devices are highly suitable to be applied in a variety of indoor or semi-outdoor spaces, including shopping malls, railway stations, and industrial areas.

Smart Control with a Smartphone

The iKAN display allows you to edit messages and control the display using your smartphone. This is very useful when you need to quickly and effi ciently display an emergency message to a large number of readers.

IP65 Rating

The iKAN IP65 model is totally waterproof and dustproof so it can be installed in dirty, soiled, or semi-outdoor environments, such as eaves, open halls, outdoor canopies, or beneath a sunroof.

Message Priority

Messages with instant priority have a higher priority than other messages. Once a message with instant priority is enabled, the common message currently being displayed will be suspended until the instant message is disabled. This feature allows the most important information to be displayed in an emergency situation.


Supports PROFIBUS DP Protocol The iKAN-PFB series contains a built-in PROFIBUS communication interface, meaning that the PROFIBUS master device can directly control the message setting for the iKAN-PFB series and modify the variables that are embedded in the message via the PROFIBUS DP protocol.

Application

https://mctt.vn/ikan-led-icp-das

PLC HMI

As the PLC is confi gured to be the PROFIBUS Master, it is able to read data from the Modbus RTU device through the GW-7552 module, and transfer it to the remote host PC. This mean that the PLC can then control the settings of the message on the iKAN-116-PFB display. The local operators are able to read the real time operating data related to the chiller liquid flow, the chilled water temperature, and the power consumption, etc., from the iKAN-116-PFB display.



Indoor Air Quality Display

As the PLC is configured to be the PROFIBUS Master, it will send data related to the machine I/O alarm status (from the PROFI-5000 module), the system power consumption (from the PM-3033-MTCP module via the GW-7553 module) to the remote PC in real-time, meaning that the PLC is then able to control the settings of the message on the iKAN-116-PFB display. The local operators are able to read the realtime operating data related to the machine alarm status, the motor speed (RPM), the operating temperature, and the power currant/ voltage, etc., from the iKAN-116-PFB display.

Specifications

Display
Size Line: 1
ASCII Characters: 24
Unicode Characters: 12
Real Time Clock Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year
Character Sets 16-bit Unicode or 7-bit ASCII
Color Red, Blue, Yellow, Green, Light Blue, Purple or White
Data Pool 40 Coil values, 64 Float values, and 64 Integer values
Message Pool 64 common messages and 10 instant messages Up to 40 Unicode characters or 100 ASCII characters each
COM Ports
Ports RS-232 or RS-485.
Note that the interfaces cannot be used simultaneously
Baud Rate 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
Data Format N81, E81, O81
Protocol Modbus RTU Master/Slave
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
Protocol Modbus TCP Slave, Max. 8 connections
Configuration Web-based User Interface
PROFIBUS
Controller Profichip VPC3+C
Transceiver ADI ADM2486
Baud Rate 9.6k, 19.2k, 45.45k, 93.75k, 187.5k, 500k, 1.5M, 3M, 6M, 12M
Isolation 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol DPV0
Power
Input Range 100 ~ 240 VAC
Consumption 0.3 A @ 110 VAC,
0.15 A @ 220 VAC
Mechanical
Casing Aluminum
Dimensions (mm) 1218 x 130 x 54 (W x L x D)
Installation Wall mounting
Weight 4 Kg
Environment
Operating Temperature 0 ~ +60°C
Storage Temperature -10 ~ +75°C
Humidity 10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

iKAN-124S-PFB     CR  Small-sized, Single-row, 12/24-Character Industrial LED Display with PROFIBUS Interface (RoHS)
