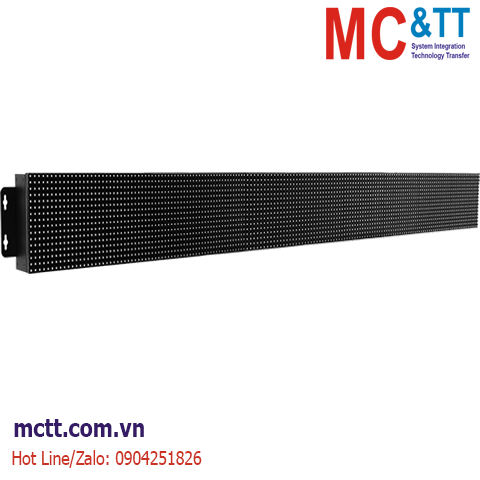

Màn hình LED công nghiệp 12/24 ký tự một hàng RS-485/Ethernet Modbus RTU/TCP ICP DAS iKAN-124 CR
Features
- Supports Modbus TCP Slave and Modbus RTU Slave protocols
- Can be remotely controlled using a smart phone or other mobile device
- 7 colors, including red, blue, yellow, green, light blue, purple and white
- Able to store up to 128 common messages
- Web-based User Interface
- Able to integrate both text and variables in a single message
- Built-in RTC (Real Time Clock )
- Supports multiple languages with a text height of 16 cm
Introduction
The iKAN series is a family of industrial LED display devices that deliver industrial-grade anti-noise capabilities as well as reliability and stability. It is highly suitable for presenting formatted messages in indoor areas using either Unicode characters, which can be used to display multiple languages, or ASCII characters.
The iKAN-116(S) provides a single line of eight Unicode characters or 16 ASCII characters, while the iKAN-124(S) provides 12 Unicode characters or 24 ASCII characters. Support for the popular Modbus industrial protocol is provided meaning that iKAN display devices can be easily integrated into existing PLC and SCADA environments.
The iKAN series allows data written from a PC or a PLC to be displayed in a formatted message in real-time. Seven colors are available for the text, which can be used to indicate different degrees of importance of the message, as well as significantly increase the readability of the message in an industrial arena. Messages can be edited and enabled/disabled using a standard web browser, such as Google Chrome, Firefox, or IE, etc., on a PC, mobile device, or smartphone.
Application
https://mctt.vn/ikan-led-icp-das
PLC HMI
The iKAN can be employed as a large HMI with a memory storage of up to 128 messages (user-defined priority), each of which can be used to display information generated by a PLC. A range of seven colors is available for the text, including red, blue, yellow, green, light blue, purple and white, which can be used to indicate warnings or alarms, as well as increasing the readability of a message.
Indoor Air Quality Display
The iKAN can be used to read indoor air quality monitoring data from an external DL-302 module, including the carbon dioxide level, temperature and humidity, and then display the information in real-time, making it suitable for commercial and public buildings, such as schools and museums, as well as for retail, leisure and healthcare facilities where personnel are required to stand for long periods of time, and where the indoor air quality is required to be monitored and displayed at the entrance or lobby of the building.
Specifications
| Display |
| Size |
Line: 1
ASCII Characters: 24
Unicode Characters: 12 |
| Real Time Clock |
Date and time, 24 hour format including second, minute, hour, date, day of the week, month, year |
| Character Sets |
16 x 16 Unicode or 8 x 16 ASCII |
| Color |
Red, Blue, Yellow, Green, Light Blue, Purple or White |
| Data Pool |
40 Coil values, 64 Float values, and 64 Integer values |
| Message Pool |
128 common messages with user-defi ned priority levels, Up to 20 Unicode characters or 50 ASCII characters
each |
| COM Ports |
| Ports |
2 × RS-485 |
| Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 |
| Data Format |
N81, E81, O81 |
| Protocol |
Modbus RTU Master/Slave |
| Ethernet |
| Ports |
2 × RJ-45, 10/100 Base-TX |
| Protocol |
Modbus TCP Master/Slave, Max. 8/8 connections |
| Configuration |
Web-based User Interface |
| Power |
| Input Range |
100 ~ 240 VAC |
| Consumption |
0.35 A @ AC 120 V |
| Mechanical |
| Casing |
Aluminum |
| Dimensions (mm) |
1986 x 160 x 49 (W x L x D) |
| Installation |
Wall mounting |
| Weight |
4.6 Kg |
| Environment |
| Operating Temperature |
0 ~ +60°C |
| Storage Temperature |
-10 ~ +75°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| iKAN-124 CR |
Single-row, 12/24-Character Industrial LED Display with Modbus/TCP protocol (RoHS) |
