Standard & Protocol |
IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX and 100Base-FX
IEEE 802.3z for 1000Base-X
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3af for PoE
IEEE 802.3at for PoE+ |
|
PoE (optional) |
The maximum power of PoE port: 30W
The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
|
Interface |
Gigabit Copper Port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE
Gigabit SFP: 1000Base-X SFP slot |
|
Indicator |
Running Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator (PoE device) |
|
Switch Property |
IES2300SL-4GT2GS-2LV
- Transmission mode: store and forward
- MAC address: 2K
- Backplane bandwidth: 16Gbps
- Switch time delay: <10μs
IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV
- Transmission mode: store and forward
- MAC address: 4K
- Cache: 2.5Mbit
- Backplane bandwidth: 20Gbps
- Switch time delay: <10μs
IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV
- Transmission mode: store and forward
- MAC address: 8K
- Cache: 4.1Mbit
- Backplane bandwidth: 52Gbps
- Switch time delay: <10μs
|
|
Power Supply |
IES2300SL-4GT2GS-2LV, IES2300SL-8GT2GS-2LV, IES2300SL-16GT2GS-2LV
- Power supply input: 12~60VDC, dual power supply redundancy
- Connection mode: adopt 4-pin 5.08mm pitch terminal blocks
- Connection protection: support anti-reverse connection
IES2300SL-8GP2GS-2LV, IES2300SL-16GP2GS-2LV
- Power supply input: 44~57VDC, dual power supply redundancy
- Connection mode: adopt 4-pin 5.08mm pitch terminal blocks
- Connection protection: support anti-reverse connection
|
|
Power Consumption |
IES2300SL-4GT2GS-2LV
- No-load: 0.8W@48VDC
- Full-load: 3.6W@48VDC
IES2300SL-8GP2GS-2LV
- No-load: 2.43W@48VDC
- Full-load (PoE): 229.4W@48VDC
IES2300SL-16GP2GS-2LV
- No-load: 5.32W@48VDC
- Full-load (without PoE): 12.96W@48VDC
- Full-load (with PoE): 238W@48VDC
|
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature: -40~85℃
Relative humidity: 5%~95% (no condensation) |
|
Mechanical Structure |

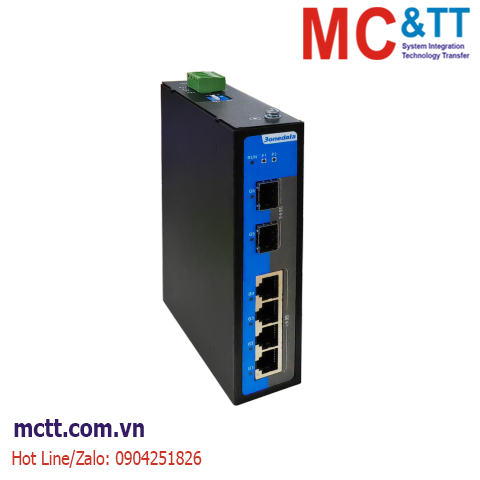

IES2300SL-4GT2GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 35mm×150mm×120mm
- Weight: 562g
IES2300SL-8GT2GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 40.6mm×150mm×120mm
- IES2300SL-8GP2GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 40.6mm×150mm×120mm
- Weight: 639g
IES2300SL-16GT2GS-2LV
- Housing: IP40 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 65mm×150mm×120mm
IES2300SL-16GP2GS-2LV
- Housing: IP30 protection, metal
- Installation: DIN-Rail or wall mounting
- Dimension (W x H x D): 65mm×150mm×120mm
- Weight: 947g
|
|
Industrial Standard |
IEC 61000-4-2 (ESD, electrostatic discharge), Level 3
- Air discharge: ±8kV
- Contact discharge: ±6kV
IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3
- Power supply: ±2kV
- Ethernet port: ±1kV
IES2300SL-4GT2GS-2LV
- IEC 61000-4-5 (Surge), Level 3
- Power supply: common mode ±2kV, differential mode ±1kV
- Ethernet port: common mode ±2kV, differential mode ±1kV
IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV, IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV
- IEC 61000-4-5 (Surge), Level 4+
- Power supply: common mode ±6kV, differential mode ±2kV
- Ethernet port: common mode ±6kV, differential mode ±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
