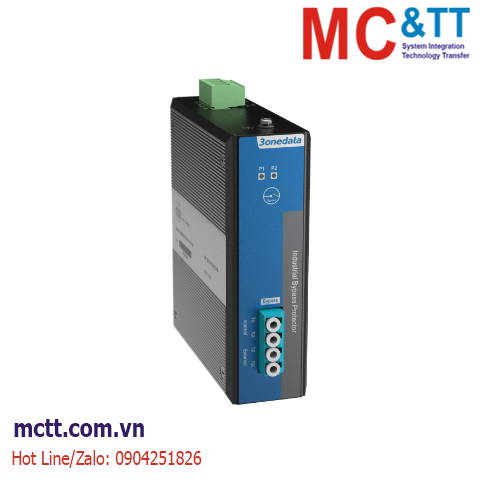

Bộ Bypass công nghiệp 2 cổng LC-LC 3Onedata IES2000-1BP-SS-LC-2P48
IES2000-1BP-SS-LC-2P48 is an one- way industrial optical fiber bypass protector that supports single-mode single-fiber LC interfaces. The device can add bypass function for any network node. When the node is powered off or fails, the data passes through the bypass protector, and other nodes in the network will not be affected, which can effectively avoid the disconnection of network communication in the whole area due to node problems.
Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Tính năng
- Support 1 single mode single-fiber LC fiber port Bypass
- Support 12~48VDC input, dual power supply redundancy, and anti-reverse connection
- Support -40~75℃ wide operating temperature range
- Support IP40 protection grade
Thông số kỹ thuật
|
Bypass Interface |
External interface (External): 2 LC interfaces, adopt single mode fiber, support Bypass
Internal interface (Internal): 2 LC interfaces, adopt single mode fiber |
|
Indicator |
Power indicator |
|
Power Supply |
12~48VDC, dual power supply redundancy, anti-reverse connection, adopt 4-pin 5.08mm pitch terminal blocks |
|
Optical Switching Time |
10ms (max.) |
|
Working Environment |
Operating temperature: -40~75℃
Storage temperature:-40~85℃
Relative humidity: 5%～95% (no condensation) |
|
Physical Characteristic |
Housing: IP40 protection, metal
Installation: DIN-Rail or wall mounting (standard DIN-Rail)
Dimension (W x H x D): 35mm×110mm×95mm
Weight: 376g |
|
Industrial Standard |
IEC61000-4-2 (ESD, electrostatic discharge), Level 4
Air discharge:± 16kV
Contact discharge: ±8kV
IEC61000-4-4 (EFT, electrical fast transient), Level 4
Power supply interface: ±4kV
IEC61000-4-5 (Surge), Level 4
Power supply: differential mode±4kV, common mode±2kV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6 |
|
Authentication |
CE, FCC, RoHS |
|
Warranty |
3 years |
Thông tin đặt hàng
| Available Models |
LC interface (External) |
LC interface (Internal) |
Power Supply |
| IES2000-1BP-SS-LC-2P48 |
2 |
2 |
12~48VDC, dual power supply |
