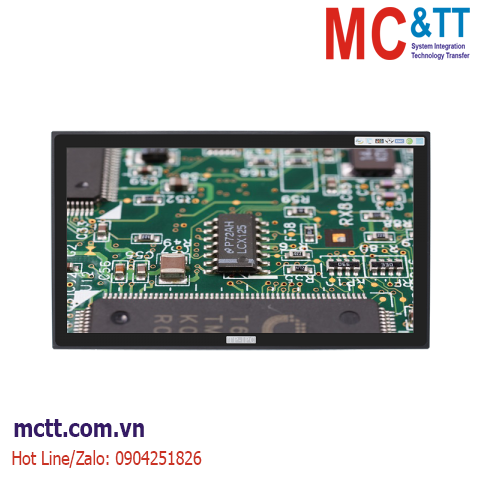

Màn hình cảm ứng công nghiệp 21.5 inch TP-IPC IDP-2150W
The IDP-2150W system is an ideal, application-ready, system platform solution with rich expansion slots. All electronic components are protected in a compact that is easy to embed in a customer’s own enclosure or use as a stand-alone unit when space is limited
Tính năng
- Front panel supports IP65 waterproof and dustproof rating
- Wide range operating temperature supports harsh environment
- Multiple screen types available for different requirements
- Standard integrated frame support different installation way
- Multiple video interfaces with HDMI, VGA & DVI-I
- Ultra-slim body size with amazing compact design
Tổng quan sản phẩm
IDP-2150W series monitors include multiple types of capacitive resistive screen CT, RT options, all aluminium alloy casing, well-built, clearer picture, more point-and-click features. 7″ to 23″ options, perfect ratio, ideal media playback quality via 1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, Touchscreen lockable USB and 9-32V DC power supply. Superior quality, light weight and slim profile.
Thông số kỹ thuật
|
Model |
IDP-2150W |
IDP-2150W-CT |
IDP-2150W-NT |
|
Display Information |
Size & Ratio |
21.5″, 16:9 |
|
Resolution |
1920*1080 |
|
Brightness |
250 (Typ.) |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR>=10) |
|
Contrast Ratio |
3000 : 1 (Typ.) ( Transmission ) |
|
Display Colors |
16.7m 72% (CIE1931) |
|
Display Area |
476.64*268.11(mm) |
|
Response Time |
13/5 (Typ.)(Tr/Td) ms |
|
Frequency |
60Hz |
|
Pixel pitch |
0.24825 |
|
Touchscreen |
Touchscreen Type |
Projected Capacitive Touchscreen |
Non-Touchscreen |
|
Touchscreen Method |
Ten point |
– |
|
Surface |
6H |
Hard coating |
|
Durability |
– |
– |
|
Transparency |
85± 3% |
– |
|
Environment |
Operating Temperature |
0 ~ 50 °C w/ 0.7m/s Airflow |
0 ~ 50 °C w/ 0.7m/s Airflow |
|
Storage Temperature |
-20 ~ 60 °C (-4~140 °F) |
-20 ~ 60 °C (-4~140 °F) |
|
Relative Humidity |
40 °C @ 95%, Non-Condensing |
|
I/O INTERFACE |
Vide & Audio |
1* HDMI, 1* DVI-I, 1* VGA, 1* Audio In, 1* Audio Out |
|
Touchscreen Interface |
1* Touchscreen Lockable USB; Optional with Touchscreen RS-232 DB9 serial port |
|
Power Supply |
9-32V DC; 1* DC Threaded Jack (5.5* 2.5mm) |
|
Physical Characteristics |
Dimensions |
520.8* 316* 43 mm (W* H* D) |
|
Net Weight |
|
|
Regulation |
EMC |
CE/FCC Class B, CCC |
|
Safety |
CE-LVD, RoHS, CCC |
Kích thước sản phẩm
Mã đặt hàng
|
Part No. |
Brightness(cd/m2) |
Touch Screen |
Video & Audio I/O |
Touchscreen Connector |
Power Connector |
Power Supply |
|
IDP-2150W-NT |
250 |
NA |
VGA, DVI, HDMI, Audio In, Audio Out |
NA |
DC Threaded Jack |
9-32V DC |
|
IDP-2150W-CT |
250 |
Projected Capacitive |
VGA, DVI, HDMI, Audio In, Audio Out |
USB or RS232 |
DC Threaded Jack |
9-32V DC |
Phụ kiện mua thêm
|
Optional Items |
Qty |
Description |
|
M Cable 9P/9P (Touchscreen RS-232 cable) |
– |
2/3/5/10/15m |
|
Lockable M cable USB-A(M)/USB-A(M) |
– |
2/3m |
|
Rotatable wall-mounted VESA bracket |
– |
75*75mm |
|
Touchscreen RS-232 module |
– |
Touch signal transmission distance up to 30m |
|
Advanced touch-module |
– |
Support touch function even when there is water on the panel |
|
VGA cable |
– |
2/3/5/10/15m |
|
HDMI cable |
– |
2/3/5/10/15m |
|
DVI cable, 1.5m |
– |
2/3/5/10/15m |
