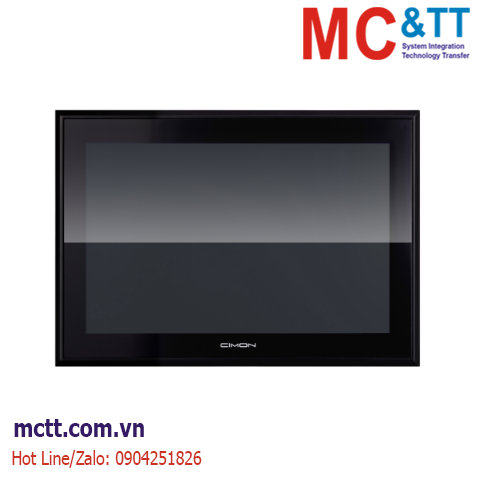

Màn hình cảm ứng công nghiệp 12.1 inch Cimon CM-IM-12W-C-D
The CIMON IM Series Industrial Monitor is designed to provide striking and functional displays for remotely-installed PCs, offering compact installation and ample space savings in industrial settings.
Tính năng
• Robust aluminum enclosures
• Crisp 16.7M-color widescreen display
• Available in 12”, 15”, or 21” sizes to suit various applications
• High-brightness options with up to 1,000cd/m² luminance
• Up to 1000:1 contrast ratio
• Versatile viewing angles up to 89-degrees
• 10-point capacitive touch

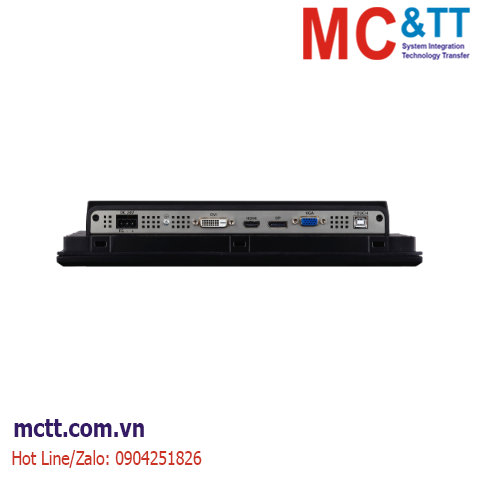

• HDMI, DP, DVI, and VGA display port options
• USB touch interface
• VESA mount compatible
Thông số kỹ thuật
| Type Part Number (CM-IM...) |
Standard
12W-C-D |
High-Brightness
12W-CH-D |
Standard
15W-C-D |
High-Brightness
15W-CH-D |
Standard
21W-C-D |
| Enclosure |
Front |
Aluminum |
| Rear |
Aluminum |
| LCD Size |
12.1 inch |
15.6 inch |
21.5 inch |
| Resolution |
1280x800 WXGA (16:10) |
1920x1080 FHD (16:9) |
| Backlight |
LED |
| Luminance |
600cd/m² |
1,000cd/m² |
450cd/m² |
1,200cd/m² |
450cd/m² |
| Display Colors |
16.7M Colors |
| Contrast Ratio |
1000:1 |
800:1 |
|
1000:1 |
| View Angles (R/L/U/D) |
85° / 85° / 85° / 85° |
89° / 89° / 89° / 89° |
| Active Area (mm) |
261.12(H) x 163.2(V) |
344.16(H) x 193.59(V) |
476.064(H) x
267.786(V) |
| Backlight Life |
50,000 Hours |
| Touch |
10-Point Capacitive |
| Touch Interface |
USB |
| Display Ports |
1 x HDMI, 1 x DP, 1 x DVI, 1 x VGA |
| Power Supply |
DC 9~36V |
| Power Consumption |
Max 16.5 W |
Max 20.3 W |
Max 30.8 W |
Max 22.7 W |
Agency
Approvals |
UL |
UL61010-1 / UL61010-2-201 (E231117) |
| CE |
Electromagnetic Compatibility Directive 2014/30/EU (EMC) |
| FCC |
The 47 CFR Part15 Of FCC Requirement |
| KC |
Registration of Broadcasting and Communication Equipments |
Protection
Class |
IP68 (front), IP69K (front) |
IP66 (front), IP69K (front) |
| Type Part Number (CM-IM...) |
Standard
12W-C-D |
High-Brightness
12W-CH-D |
Standard
15W-C-D |
High-Brightness
15W-CH-D |
Standard
21W-C-D |
| Operating Temperature |
-20°C – +70°C (-4 – +158°F) |
0°C – +50°C
(32 – +122 °F) |
| Storage Temperature |
-20°C – +80°C ( -4 – +176 °F) |
-20°C – +60°C
(-4 – +140 °F |
| Operating Humidity |
10%–90% RH (Below 29℃, No dew condensation) |
| Storage Humidity |
10%–90% RH (Below 39℃, No dew condensation) |
| Model |
All IM-12W Models |
All IM-15W Models |
All IM-21W Models |
| Dimensions |
314.9 x 221.2 x 55.6 mm
(12.4 x 8.71 x 2.19 in |
394.2 x 248.5 x 55.6 mm
(15.52 x 9.78 x 2.19 in) |
545.2 x 334.8 x 59.9 mm
(21.46 x 13.18 x 2.36 in) |
| Panel Cut |
305 x 212 mm
(12.01 x 8.35 in) |
385 x 239 mm
(15.16 x 9.41 in) |
536 x 326 mm
(21.10 x 12.83 in) |
| Weight |
2.6 kg (5.73 lb) |
3.7 kg (8.16 lb) |
6.5 kg (14.33 lb) |
| VESA Mount |
100 x 100 mm (3.94 x 3.94 in) |
Thông tin đặt hàng
12.1”, 1280x800 WXGA (16:10), Capacitive Touch Industrial Monitor, 1 x HDMI, 1 x DP, 1 x DVI, 1 x VGA, USB Touch Interface
