Switch công nghiệp TSN quản lý layer 3 4 cổng 10Gb SFP+ + 24 cổng Gigabit Ethernet + 16 cổng Gigabit SFP 3Onedata ICS5400PTP-24GT16GS4XS-2HV

Chia sẻ:
Mã sản phẩm: ICS5400PTP-24GT16GS4XS-2HV
Thương hiệu: 3onedata
Tình trạng:

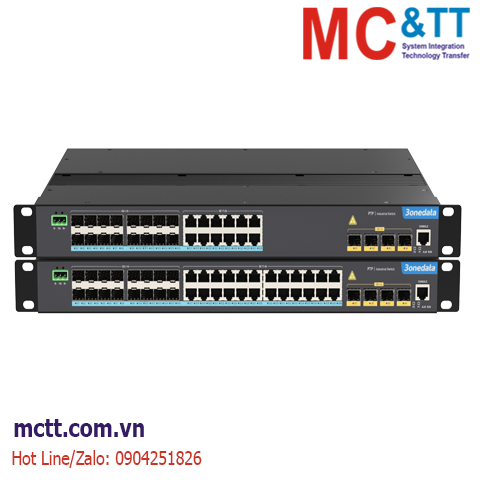

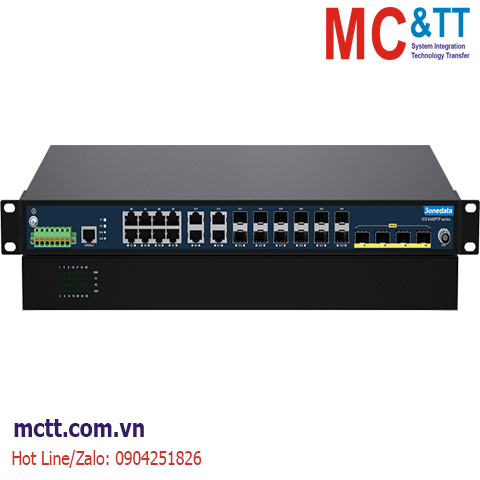

19-inch 1U Rack Mounting 44-Port Gigabit/ 10Gigabit Layer 3 PTP Industrial Ethernet Switch

Liên hệ
Mô tả

Switch công nghiệp TSN quản lý layer 3 4 cổng 10Gb SFP+ + 24 cổng Gigabit Ethernet + 16 cổng Gigabit SFP 3Onedata ICS5400PTP-24GT16GS4XS-2HV

ICS5400PTP series are 44-port Gigabit/10Gigabit layer 3 industrial Ethernet switches. Provide Gigabit copper port, Gigabit SFP slot, 10Gigabit SFP+ slot, which can negotiate the port rate and duplex mode with the device at the opposite end through self-negotiation. Support 85~264VAC power supply input, and adopt rack installation mode, which can meet the requirements of different application sites.

The network management system supports a variety of network protocols and industry standards, such as IPv6, PTP, OSPF, PIM, VRRP, ISIS, NAT, Ring, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP, port mirroring. It possesses complete management functions and supports SNMP centralized management, port statistics, storm suppression, network diagnosis, online upgrade, etc. CLI, HTTP, HTTPS, TELNET, SSH and other access methods can be supported. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. The hardware adopts fanless, low power consumption and wide temperature design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in railway transportation, smart mining, smart city, new energy, smart grid, intelligent manufacturing smart medical care, petroleum and petrochemical industry and other industrial fields.

Tính năng

  • Support 12/24 Gigabit copper ports, 16 Gigabit SFP slots, 4 10Gigabit SFP+ slots
  • Support Precision Time Protocol (PTP), provide sub-microsecond synchronization accuracy to meet requirements for high-precision time synchronization
  • Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
  • Support multiple network protocols and industry standards, such as Ipv6, RIP, OSPF, PIM, VRRP, ISIS, NAT, MRP, STP/RSTP/MSTP, ERPS, VLAN, IGMP/MLD, IGMP/MLD Snooping, DHCP Server/Relay, LLDP, LACP
  • Support dual power redundancy, input voltage 85~264VAC
  • Support -40~75℃ wide operating temperature range

Thông số kỹ thuật

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX

IEEE 802.3ab for 1000Base-T

IEEE 802.3z for 1000Base-X

IEEE 802.3ae for 10GBase-X

IEEE 802.1AS, IEEE1588 for PTP

IEEE 802.3x for Flow Control

IEEE 802.1D for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

ITU-T G.8032 for ERPS

IEEE 802.1Q for VLAN

IEEE 802.1AB for LLDP

IEEE 802.3ad for LACP

PTP (Precise Time Protocol)

IEEE1588, IEEE802.1AS

Management

SNMP v1/v2c/v3 centralized managed equipment, Port Mirroring, LLDP, DHCP Server, DHCP Relay, port speed limit, port isolation, port statistics, file management, online upgrade, log information, Syslog server

Security

User privilege classification, SSH/HTTPS protocol authorization, link flap protection, port loop detection, IPDT, IPv6DT, Smart-Link, NAT, port alarm and power alarm.

Switch Function

802.1Q VLAN, MAC, static aggregation, LACP, ARP, storm suppression

Unicast/Multicast

IGMP-Snooping, MLD-Snooping, IGMP, MLD, PIM-SM, PIM-DM, IPv6-PIM-SM, IPv6-PIM-DM

Redundancy Technology

Ring, MRP, STP/RSTP/MSTP, ERPS

Routing Technique

RIP, RIPng, OSPF, OSPFv3, ISIS, VRRP, IPv6 VRRP, BGP

Troubleshooting

Ping, Traceroute, Network Cable Diagnosis, DDMI

Time Management

NTP client/server, time zone configuration

Interface

Gigabit copper port: 10/100/1000Base-T(X) self-adaption or forced mode, RJ45, Automatic Flow Control, Full/Half Duplex Mode self-adaption, MDI/MDI-X Autotunning

Gigabit SFP slot : 100/1000Base-X self-adaption or forced mode, SFP slot

10Gigabit SFP+ slot: 1G/2.5G/10G Base-X self-adaption or forced mode, SFP+ slot

Console port: CLI command line management port(RS-232), RJ45

Relay: support 1 relay alarm information output, using 3-pin 5.08mm pitch terminal blocks, and the current load capacity is 1A@30VDC or 0.3A@125VAC

Indicator

Power indicator, running indicator, alarm indicator, interface indicator

Switch Property

Transmission mode: store and forward

MAC address: 32K

Buffer: 32Mbit

Backplane bandwidth: 160G

Switch delay: <10μs

Power Supply

110VAC/220VAC(85~264VAC) power input, support dual power redundancy, use AC socket with switch.

Power Consumption

ICS5400PTP-24GT16GS4XS-2HV:

No-load: 19.5W

Full-load: 47.3W

Working Environment

Operating temperature: -40~75℃

Storage temperature:-40~85℃

Relative humidity: 5%~95% (no condensation)

Physical Characteristic

Housing: IP40 protection, metal

Installation: 19-inch 1U rack mounting

Dimension (W x H x D): 441.6mm×44.45mm×290mm (lugs are not included)

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

Contact discharge: ±6kV

Air discharge: ±8kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

Power supply: ±2kV

Copper port: ±2kV

IEC 61000-4-5 (Surge), Level 3

Power supply: differential mode±1kV, common mode±2kV

Copper port: ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS, IPv6 Ready LoGo

Warranty

3 years

Download

Datasheet

Quick Guide

Thông tin đặt hàng

Available Models

Gigabit Copper Port

Gigabit SFP

10Gigabit SFP+

Power Supply

ICS5400PTP-12GT16GS4XS-2HV

12

16

4

85~264VAC, dual power supply redundancy

ICS5400PTP-24GT16GS4XS-2HV

24

16

4
