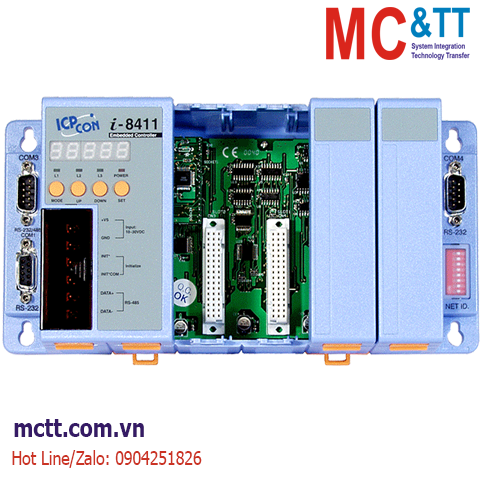

Bộ lập trình nhúng MiniOS7 PAC với CPU 80188-40 + 4 khe cắm module I/O ICP DAS I-8411 CR
Features
• 80188 or compatible (8-bit and 40 MHz)
• MiniOS7 Embedded Operating System (DOS-like)
• 64-bit Hardware Serial Number for Software Protection
• Built-in Watchdog Timer
• 7-Segment display x 5
• Serial Port x 4 (RS-232 or RS-485 communication Interface)
• Input Protection Circuity
• 4 Slots for I-8K and I-87K Modules
• Operating Temperature: -25 ~ +75 °C
Introduction
The I-8411 is a serial embedded controller with 4 I/O slots. Both are equipped with MiniOS7,an embedded OS similar to DOS that is developed by ICPDAS Co., LTD. The MiniOS7 can boot up in a very short time (0.4 ~ 0.8 second).It has built-in hardware diagnostic function, and supports the full functions to access all 8K and 87K series I/O modules, such as DI, DO, DIO, AI, AO, Counter/Frequency, motion modules etc.
The I-8411 backplane is equipped 4 serial COM Port, they include RS-232 and RS-485 ports and can be used in remote data acquisition and control applications, including environment monitoring, power management and factory automation.
By using S-256 (256 KBytes) or S-512 (512 KBytes) battery backup SRAM, they provide data logger storage function.
Application
https://mctt.vn/ip-8000-i-8000-icp-das
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80188 or compatible, 8-bit and 40 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
1 x Power, 3 x Programmable |
| I/O Expansion |
| I/O Type |
I-8K, I-87K series |
| Slots |
4 |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| HMI |
| DIP Switch |
8-bit for address |
| Push Button |
4 |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
3.9 W |
| Mechanical |
| Dimensions (mm) |
231 x 110 x 77 (W x L x H) |
| Installation |
DIN-Rail, Wall mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
5 ~ 95 % RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-8411 CR |
4-slot Serial Embedded Controller with 80188-40 CPU and MiniOS7 (Blue Cover) (RoHS) |
