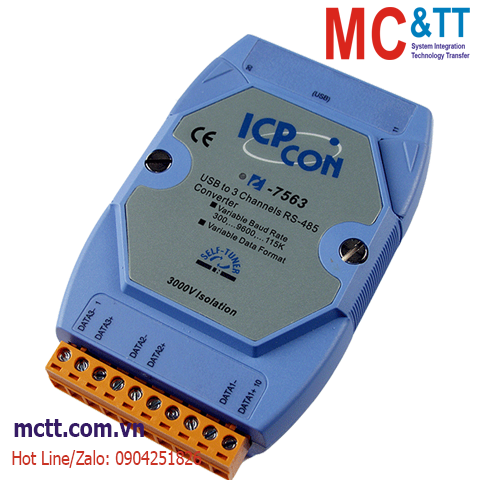

Bộ chuyển đổi USB sang 3 cổng RS-485 ICP DAS I-7563 CR
Feature
- Fully Compliant with the USB 1.1/2.0/3.0
- 3000 VDC Isolation Protection on the RS-485 side
- ESD Protection for the RS-485 Data Line
- No External Power Supply required
- Automatic RS-485 Direction Control
- RS-485 Active Star Wiring Applications
Introduction
The I-7563 is a cost-effective module for transferring serial data via USB. It allows you to connect your serial devices to systems that use a USB interface. Connecting the I-7563 to a PC, you get one COM port on system. The I-7563/I-7563U contains "Self-Tuner", this chip auto-tunes the Baud Rate and data format to the RS-485 network. The I-7563 module derives its power from the USB port and doesn't need any power adapter.
Do you have any RS-485 wiring problems I-7563 is a USB to 3-channel RS-485 Hub. With RS-485 driver IC, so it can support star-shaped wiring.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
300 ~ 115200 bps |
| USB |
| Specification |
Fully Compliant with the USB 1.1/2.0/3.0 |
| Connector |
Type B |
| Power |
| Input Range |
+5 VDC from USB |
| Consumption |
0.5 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
72 x 115 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7563 CR |
USB to Isolated RS-485 Active Star Wiring Converter with CA-USB18 Cable (Blue Cover) (RoHS) |
