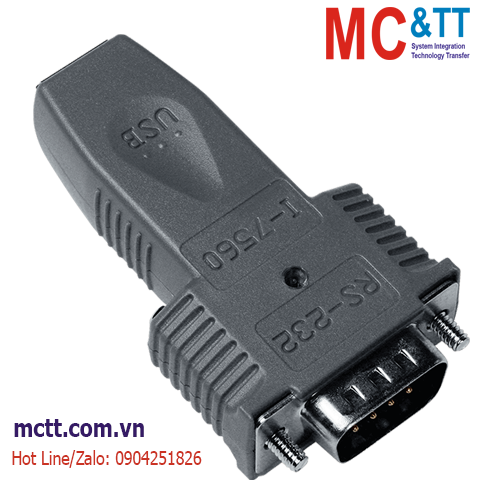

Bộ chuyển đổi USB sang RS-232 ICP DAS I-7560 CR
Feature
- Fully Compliant with the USB 1.1/2.0/3.0
- No External Power Supply required
- Operating Temperatures, -25 °C ~ +75 °C
Introduction
The I-7560 provides a Windows serial COM port via it's USB connection and is compatible with new and legacy RS-232 devices. USB Plug-and-Play allows easy serial port expansion and requires no IRQ, DMA, or I/O port settings manually.
The I-7560 features a full set of RS-232 modem data and control signals (TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI and GND) on it's PC compatible DB-9 male connector. It also features a high-speed 115200 bps transmission rate.
The I-7560 is powered from the USB bus and no additional power supply is needed.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| LED Indicators |
| Status |
1 x Power and Communication |
| COM Ports |
| Ports |
1 x RS-232 |
| Baud Rate |
300 ~ 115200 bps |
| USB |
| Specification |
Fully Compliant with the USB 1.1/2.0/3.0 |
| Connector |
Type B |
| Power |
| Input Range |
+5 VDC from USB |
| Consumption |
0.3 W |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 15 x 60 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +75 °C |
| Humidity |
10 ~ 90% RH, non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7560 CR |
USB to RS-232 Converter with CA-USB18 Cable (RoHS) |
