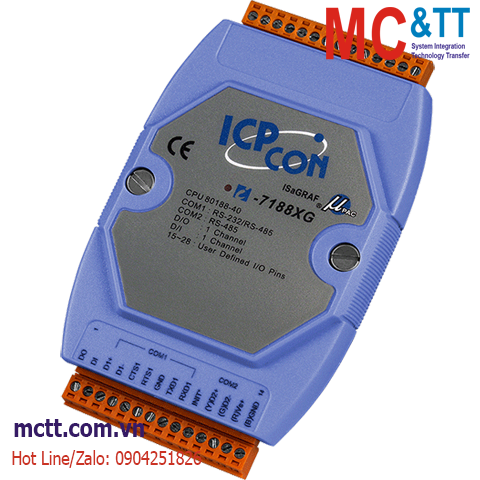

Bộ lập trình nhúng ISaGRAF PAC CPU 80188-40 + MiniOS7 ICP DAS I-7188XG CR
Features
• 80188, 40 MHz CPU
• MiniOS7 Inside
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• Support Modbus RTU/ASCII Master
• Support Modbus RTU Slave
Introduction
The I-7188XG series (I-7188XG, I-7188XGD) is a palm-size PAC with ISaGRAF SoftLogic. It has 2 Serial ports (COM1:RS-232/RS-485 & COM2:RS-485). The user can choose an I/O expansion board, X-Board, to expand COM Ports, I/Os or memories of I-7188XG Series.
I-7188XGD is the same as I-7188XG but with 5-digit 7-segment LED display.
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
Application
Specifications
| Software |
| OS |
MiniOS7 |
| Protocol |
• NET ID
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU remote I/O
• Fbus
• SMS |
| Development |
Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module |
| CPU |
80188, 40 MHz |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x System |
| Digital Input |
| Channels |
1 |
| Type |
Dry Contact |
| ON Voltage Level |
Close to GND |
| OFF Voltage Level |
Open |
| Digital Output |
| Channels |
1 |
| Type |
Open Collector |
| Load Voltage |
+30 VDC max. |
| Load Current |
100 mA |
| I/O Expansion |
| I/O Type |
X-board |
| COM Ports |
| Ports |
1 x RS-485, Non-isolated
1 x RS-232/485, Non-isolated |
| Baud Rate |
115200 bps Max. |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
72 x 119 x 33 (W x H x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7188XG CR |
ISaGRAF Based Palm-Sized Serial PAC with 80188-40 CPU, MiniOS7, 1 DI and 1 DO (RoHS) |
