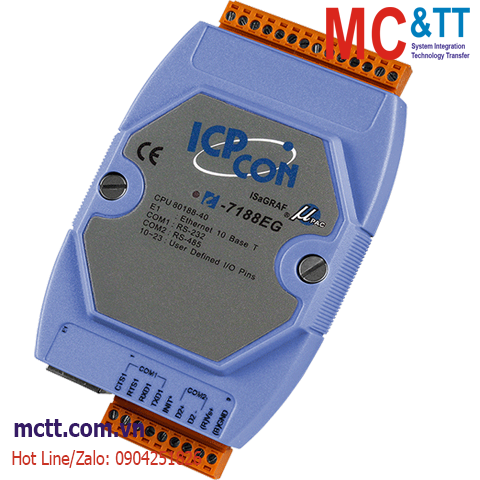

Bộ lập trình nhúng ISaGRAF PAC CPU 80188-40 + MiniOS7 ICP DAS I-7188EG CR
Features
• 80188, 40 MHz CPU
• MiniOS7 Inside
• Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3)
• 10 Ethernet Ports
• Support Modbus RTU/ASCII Master
• Support Modbus RTU/TCP Slave
Introduction
The I-7188EG Series (I-7188EG, I-7188EGD) is a palm-size PAC and includes ISaGRAF SoftLogic. It has one 10 Base-T Ethernet port, one RS-232 port, and one RS-485 port.
The user can choose an I/O expansion board, X-Board, to expand the COM Ports, I/Os or memories of I-7188EG. I-7188EG supports Modbus serial protocol, Modbus TCP/IP protocol, Modbus Master protocol, Remote I/O, SMS: Short Message Service, Fbus, Ebus, modem link, MMICON/LCD and user-defined protocol.
I-7188EGD is the same as I-7188EG but with 5-digit 7-segment LED display.
Notice:
ISaGRAF can not run on 64-bit Windows 7/8 PCs. Win-GRAF would be proper choice.
Application
Specifications
| Software |
| OS |
MiniOS7 |
| Protocol |
• NET ID
• Modbus TCP/IP Slave
• Modbus RTU/ASCII Master
• Modbus RTU Slave
• DCON Protocol
• User-defined Protocol
• I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O
• Fbus
• Ebus
• SMS |
| Development |
Embedded ISaGRAF Ver.3 SoftLogic (IEC 61131-3) |
| CPU Module |
| CPU |
80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB |
| Real Time Clock |
Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x System |
| I/O Expansion |
| I/O Type |
X-board |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 |
| Baud Rate |
115200 bps Max. |
| Ethernet |
| Ports |
1 x RJ-45, 10Base-T |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 33 (W x H x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7188EG CR |
ISaGRAF Based Palm-sized Ethernet PAC with 80188-40 CPU, MiniOS7, 1 I/O Bus (RoHS) |
