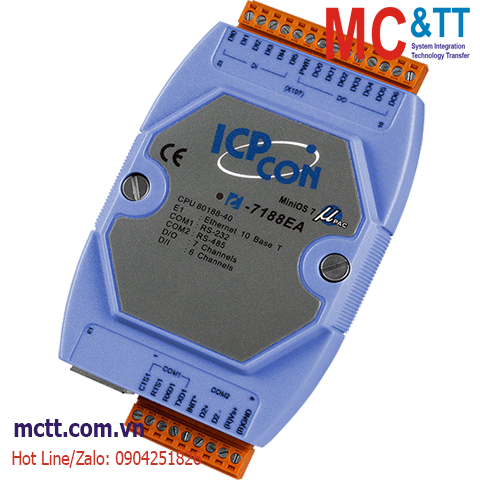

Bộ lập trình nhúng MiniOS7 PAC với CPU 80188-40 + 6 kênh DI + 7 kênh DO ICP DAS I-7188EA CR
Features
• Built-in High Performance MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
‣ 512 KB Flash
‣ 2 KB EEPROM
• Various Communication Interfaces
‣ 10 BASE-T NE2000 compatible Ethernet
‣ RS-232/RS-485
• Built-in Digital Input/Output
‣ 6 Digital Inputs
‣ 7 Open-collector Outputs
• 64-bit Hardware Serial Number
• Build-in Watchdog Timer
Introduction
The I-7188EA is a palm-size programmable automation controller with RS-232/485 and Ethernet communication interfaces. There are 7-channel digital outputs and 6-channel inputs on the I-7188EA to meet various I/O requirements. ICP DAS provides easy-to-use software development tool kits (XServer, Modbus libraries).
Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
Application
https://mctt.vn/upac-7186-i-7188-icp-das
Specifications
| Software |
| OS |
MiniOS7 |
| Development |
C Language |
| CPU Module |
| CPU |
80188, 40 MHz or compatible |
| 64-bit Hardware Serial Number |
Yes |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
512 KB |
| Real Time Clock |
Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
1 x System |
| Digital Input |
| Channels |
6 |
| Type |
Dry Contact
Wet Contact |
| Sink/Source (NPN/PNP) |
Wet: Sink
Dry: Source |
| ON Voltage Level |
Wet: +3.5 VDC ~ +30 VDC
Dry: Close to GND |
| OFF Voltage Level |
Wet: +1 VDC Max.
Dry: Open |
| Digital Output |
| Channels |
7 |
| Type |
Open Collector |
| Load Voltage |
+30 VDC max. |
| Load Current |
100 mA |
| COM Ports |
| Ports |
1 x RS-232, 1 x RS-485 |
| Baud Rate |
115200 bps Max. |
| Ethernet |
| Ports |
1 x RJ-45, 10 Base-T |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
2.0 W |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 33 (W x H x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7188EA CR |
Ethernet PAC with 80188-40 CPU, MiniOS7, 6 DI and 7 DO (Blue Cover) (RoHS) |
