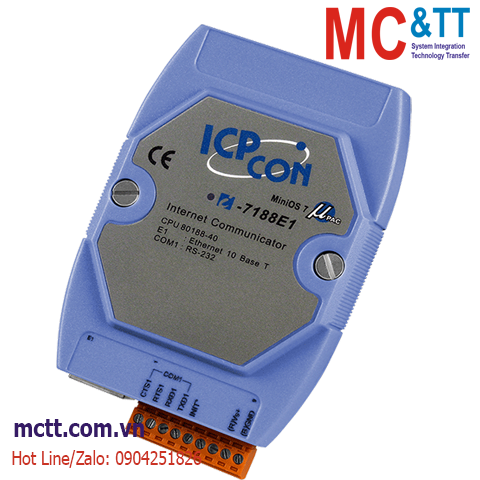

Bộ lập trình chuyển đổi 1 cổng RS-232 sang Ethernet ICP DAS I-7188E1 CR
Feature
- Incorporates any RS-232 serial device in Ethernet
- Data transmission via Virtual COM or raw TCP connection
- VxComm Driver for 32-bit and 64-bit Windows 7 SP1/10/2012/2016
- Built-in High-Performance MiniOS7 from ICP DAS
- Watchdog Timer suitable for use in harsh environments
- Palm-Sized with multiple Serial Ports
- Power Reverse Polarity Protection
Introduction
The I-7188EN series is a family of Programmable Device Servers, also known as "Serial-to-Ethernet gateway", that are designed for linking RS-232/422/485 devices to an Ethernet network. The user-friendly VxComm Driver/Utility allows users to easily turn the built-in COM ports of the I-7188EN series into standard COM ports on a computer. By virtue of its protocol independence, a small-core OS and high flexibility, the I-7188EN series is able to meet the demands of every network-enabled application.
The I-7188EN series includes a powerful and reliable Xserver programming structure that allows you to design your robust Ethernet applications in one day. The built-in high-performance MiniOS7 boots the I-7188EN up in just one second and gives you the fastest responses.
The I-7188E1(D) is equipped with 1 RS-232 port. The removable on-board terminal block connector is designed for easy and robust wiring in industrial situations.
Application
Specifications
| CPU Module |
| CPU |
80188, 40MHz or compatible |
| EEPROM |
2K Bytes |
| Flash |
512K bytes |
| SRAM |
384K bytes |
| Watchdog Timer |
Yes |
| LED Indicators |
| Status |
Yes |
| COM Ports |
| Ports |
1 x RS-232 (TXD, RXD, RTS, CTS, GND) |
| Baud Rate |
115200 bps Max. |
| Parity |
Even, Odd, None |
| Data Bit |
7, 8 |
| Stop Bit |
1 |
| Ethernet |
| Ports |
10BASE-T NE2000 compatible Ethernet Controller |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 VDC ~ +30 VDC (non-regulated) |
| Consumption |
2W |
| Mechanical |
| Dimensions (mm) |
123 mm x 72 mm x 33 mm |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-40 °C ~ +80 °C |
Download
Datasheet
Documents
Ordering Information
| I-7188E1 CR |
Programmable Ethernet to 1x RS-232 port converter (RoHS) |
