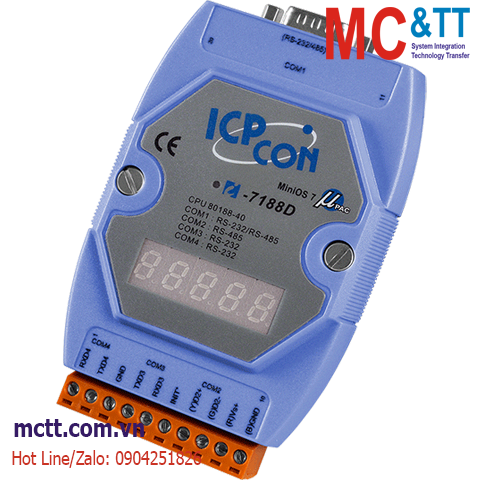

Bộ lập trình nhúng ROM-DOS PAC CPU 80188-40 ICP DAS I-7188D/DOS/512 CR
Features
• 80188, 40 MHz CPU
• Built-in ROM-DOS and ROM-Disk
• Various Storage Media
‣ 512 KB Flash
‣ 2 KB EEPROM
• Various Communication Interfaces
‣ RS-232
‣ RS-485
• Programmable LED Indicator
• Build-in Watchdog Timer
Introduction
The I-7188D/DOS/512 is for industry applications and can be used to replace PC or PLC devices in harsh environments. The I-7188D/DOS/512 controller is designed for palm-size embedded systems that require high reliability, PC-compatibility, and compactness at a reasonable price.
The controllers can be integrated into an OEM product as a processor core component. By building your product around I-7188D/DOS/512 controller, you reduce the time from design to market introduction, cut development costs, minimize technical risks, and deliver a more reliable product. Depending on the type of embedded firmware programs that are being developed, the I-7188D/DOS/512 can be used as a single versatile controller.
Application
Specifications
| Software |
| OS |
ROM-DOS |
| Development |
C Language |
| CPU Module |
| CPU |
80188, 40MHz or compatible |
| EEPROM |
2 KB |
| Flash |
512 KB |
| NVRAM |
31 Bytes |
| SRAM |
256 KB |
| Real Time Clock |
Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer |
Yes |
| Display |
| Type |
5 x Digit 7 Segment LED Display |
| LED Indicators |
| Status |
1 x System |
| COM Ports |
| Ports |
2 x RS-232, 1 x RS-485, 1 x RS-232/RS-485 |
| Baud Rate |
115200 bps Max. |
| Power |
| Input Range |
+10 ~ 30 VDC |
| Consumption |
3.0 W |
| Mechanical |
| Dimensions (mm) |
72 x 119 x 33 (W x H x D) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
5 ~ 90 %, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7188D/DOS/512 CR |
Serial PAC with 80188-40 CPU, ROM-DOS, 512KB Flash, 256KB SRAM and 7-Segment LED Display (Blue Cover) (RoHS) |
