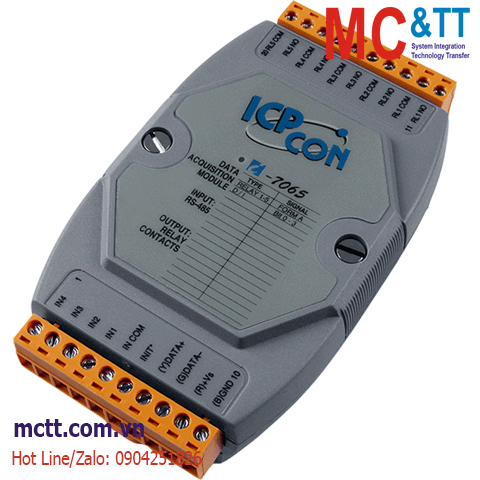

Module RS-485 DCON 5 kênh đầu ra Relay + 4 kênh đầu vào số DI ICP DAS I-7065-G CR
Features
- 4 Digital Inputs and 5 Relay Outputs
- Sink- or Source-type Digital Input
- Form A Power Relay Output
- Digital Input Channels Can be Used as 16-bit Counters
- Configurable Power-on Value and Safe Value Settings
- Built-in Dual Watchdog
Introduction
The I-7063 module provides 8 digital input channels and 3 Form A relay output channels, and the 7065 series provides 4 digital input channels and 5 Form A relay output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The I-7063D provides 11 LED indicators and the I-7065D/M-7065D provides 9 LED indicators that can be used to monitor the status of the digital input and relay output. The M-7065 supports both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| CPU Module |
| Watchdog Timer |
Module, Communication (Programmable) |
| Isolation |
| Intra-module Isolation |
3750 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each Terminal
±8 kV Air for Random Point |
| LED Indicators |
| Status |
1 x Power and Communication |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+1 VDC Max. |
| OFF Voltage Level |
+4 ~ +30 VDC |
| Max. Counts |
65535 (16-bit) |
| Frequency |
100 Hz |
| Min. Pulse Width |
5 ms |
| Input Impedance |
3 kΩ |
| Overvoltage Protection |
±35 VDC |
| Relay Output |
| Channels |
5 (Form A) |
| Type |
Power Relay |
| Contact Material |
Gold-plated Silver Cadmium Alloy |
| Contact Rating |
Form A:
5 A @ 250 VAC
5 A @ 30 VDC |
| Operate Time |
6 ms |
| Release Time |
3 ms |
| Electrical Endurance |
1 x 10^5 ops. |
| Mechanical Endurance |
2 x 10^7 ops. |
| Surge Strength |
4000 VDC |
| Power on Value |
Programmable |
| Safe Value |
Programmable |
| COM Ports |
| Ports |
1 x RS-485 |
| Baud Rate |
1200 ~ 115200 bps |
| Data Format |
(N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1) |
| Protocol |
DCON |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC |
| Consumption |
1.3 W |
| Mechanical |
| Dimensions (mm) |
123 x 72 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +85 °C |
| Humidity |
10 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| I-7065-G CR |
4-ch Isolated (Wet, 4~30 VDC) DI and 5-ch Power Relay Module using DCON Protocol (Gray Cover) (RoHS) |
