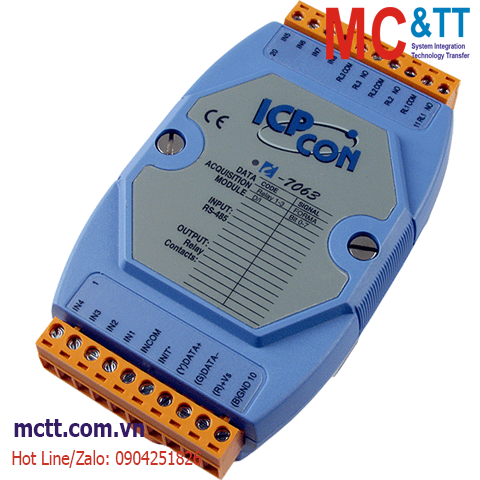

Module RS-485 DCON 3 kênh đầu ra Relay + 8 kênh đầu vào số DI ICP DAS I-7063 CR

Chia sẻ:
Mã sản phẩm: I-7063
Thương hiệu: ICP DAS
Tình trạng:

8-ch Isolated (Wet, 4~30 VDC) DI and 3-ch Power Relay Module

Liên hệ
Mô tả

Module RS-485 DCON 3 kênh đầu ra Relay + 8 kênh đầu vào số DI ICP DAS I-7063 CR

Features

  • 8 Digital Inputs and 3 Relay Outputs
  • Sink- or Source-type Digital Input
  • Form A Power Relay Output
  • Digital Input Channels Can be Used as 16-bit Counters
  • Configurable Power-on Value and Safe Value Settings
  • Built-in Dual Watchdog

Introduction

The I-7063 module provides 8 digital input channels and 3 Form A relay output channels, and the 7065 series provides 4 digital input channels and 5 Form A relay output channels. All digital input channels can be used as 16-bit counters. In addition, the digital input channels can be selected either as sink- or source-type via wire connections. The I-7063D provides 11 LED indicators and the I-7065D/M-7065D provides 9 LED indicators that can be used to monitor the status of the digital input and relay output. The M-7065 supports both the Modbus RTU and DCON protocols, which can be configured via software. There are also options for configuring power-on and safe values. 4 kV ESD protection and 3750 VDC intra-module isolation are also provided to enhance noise protection capabilities in industrial environments.

Applications

• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment

Specifications

CPU Module
Watchdog Timer Module, Communication (Programmable)
Isolation
Intra-module Isolation 3750 VDC
EMS Protection
EFT (IEC 61000-4-4) ±2 kV for Power Line
ESD (IEC 61000-4-2) ±4 kV Contact for each Terminal
±8 kV Air for Random Point
LED Indicators
Status 1 x Power and Communication
Digital Input/Counter
Channels 8
Type Wet Contact
Sink/Source (NPN/PNP) Sink/Source
ON Voltage Level +1 VDC Max.
OFF Voltage Level +4 ~ +30 VDC
Max. Counts 65535 (16-bit)
Frequency 100 Hz
Min. Pulse Width 5 ms
Input Impedance 3 kΩ
Overvoltage Protection ±35 VDC
Relay Output
Channels 3 (Form A)
Type Power Relay
Contact Material Gold-plated Silver Cadmium Alloy
Contact Rating Form A:
5 A @ 250 VAC
5 A @ 30 VDC
Operate Time 6 ms
Release Time 3 ms
Electrical Endurance 1 x 10^5 ops.
Mechanical Endurance 2 x 10^7 ops.
Surge Strength 4000 VDC
Power on Value Programmable
Safe Value Programmable
COM Ports
Ports 1 x RS-485
Baud Rate 1200 ~ 115200 bps
Data Format (N, 8, 1), (N, 8, 2), (E, 8, 1), or (O, 8, 1)
Protocol DCON
Power
Reverse Polarity Protection Yes
Input Range +10 ~ +30 VDC
Consumption 0.9 W
Mechanical
Dimensions (mm) 123 x 72 x 35 (W x L x H)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +85 °C
Humidity 10 ~ 95% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

I-7063     CR  8-ch Isolated (Wet, 4~30 VDC) DI and 3-ch Power Relay Module using DCON Protocol (Blue Cover) (RoHS)
