8-ch AI Module
Khi mua hàng tại website của chúng tôi, quý khách sẽ được:

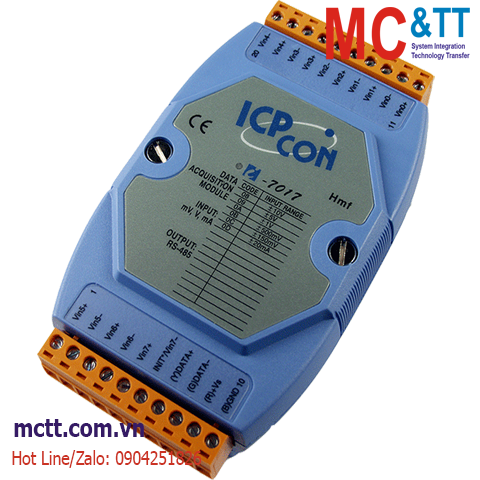

Module RS-485 DCON 8 kênh đầu vào tương tự AI ICP DAS I-7017 CR
Features
Introduction
The I-7017 and I-7017F are analog input modules that provide either 8 differential input channels, or 6 differential input channels and 2 singleended input channels selectable via a jumper. The input type includes both voltage and current, and all channels are available for the same input range. An optional external 125 Ω resistor is required for current input. The modules also feature 3000 VDC intra-module isolation as well as +/-120 VDC overvoltage protection. The sampling rate of the I-7017F is adjustable, meaning that either fast mode or normal mode can be selected. The M-7017 supports both the Modbus RTU and DCON protocols, which can be configured via software, and provides 8 differential analog input channels. Other hardware specifications are the same as the I-7017.
Applications
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
CPU Module | |
---|---|
Watchdog Timer | Module, Communication (Programmable) |
Isolation | |
---|---|
Intra-module Isolation | 3000 VDC |
EMS Protection | |
---|---|
ESD (IEC 61000-4-2) | ±2 kV Contact for each Terminal |
RS Immunity (IEC 61000-4-3) | ±4 kV for Power |
LED Indicators | |
---|---|
Status | 1 x Power and Communication |
Analog Input | |
---|---|
Channels | 6 Differential and 2 Single-ended, or 8 Differential. |
Type | Voltage Current |
Range | ±150 mV, ±500 mV, ±1V, ±5 V, ±10 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA (requires an optional external 125 Ω resistor) |
Resolution | 16-bit |
Accuracy | ±0.1% of FSR |
Sampling Rate | 10 Hz |
Input Impedance | 20 MΩ |
Common Voltage Protection | ±15 VDC |
Overvoltage Protection | ±120 VDC |
COM Ports | |
---|---|
Ports | 1 x RS-485 |
Baud Rate | 1200 ~ 115200 bps |
Data Format | (N, 8, 1) |
Protocol | DCON |
Power | |
---|---|
Reverse Polarity Protection | Yes |
Input Range | +10 ~ +30 VDC |
Consumption | 1.3 W |
Mechanical | |
---|---|
Dimensions (mm) | 123 x 72 x 35 (W x L x H) |
Installation | DIN-Rail Mounting |
Environment | |
---|---|
Operating Temperature | -25 ~ +75 °C |
Storage Temperature | -40 ~ +85 °C |
Humidity | 10 ~ 95% RH, Non-condensing |
Download
Ordering Information
I-7017 CR | 8-ch AI Module using DCON Protocol (Blue Cover) (RoHS) |
