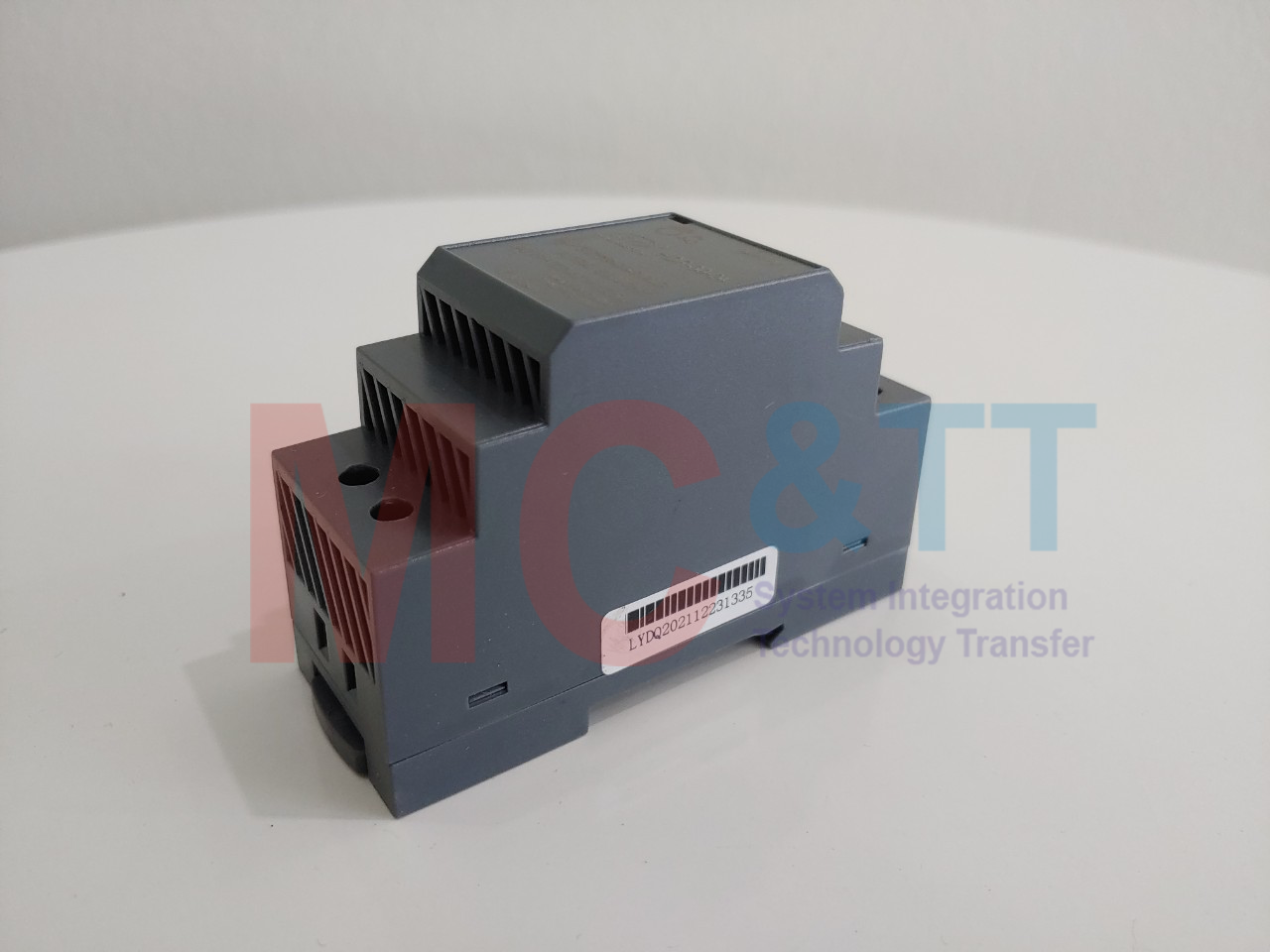

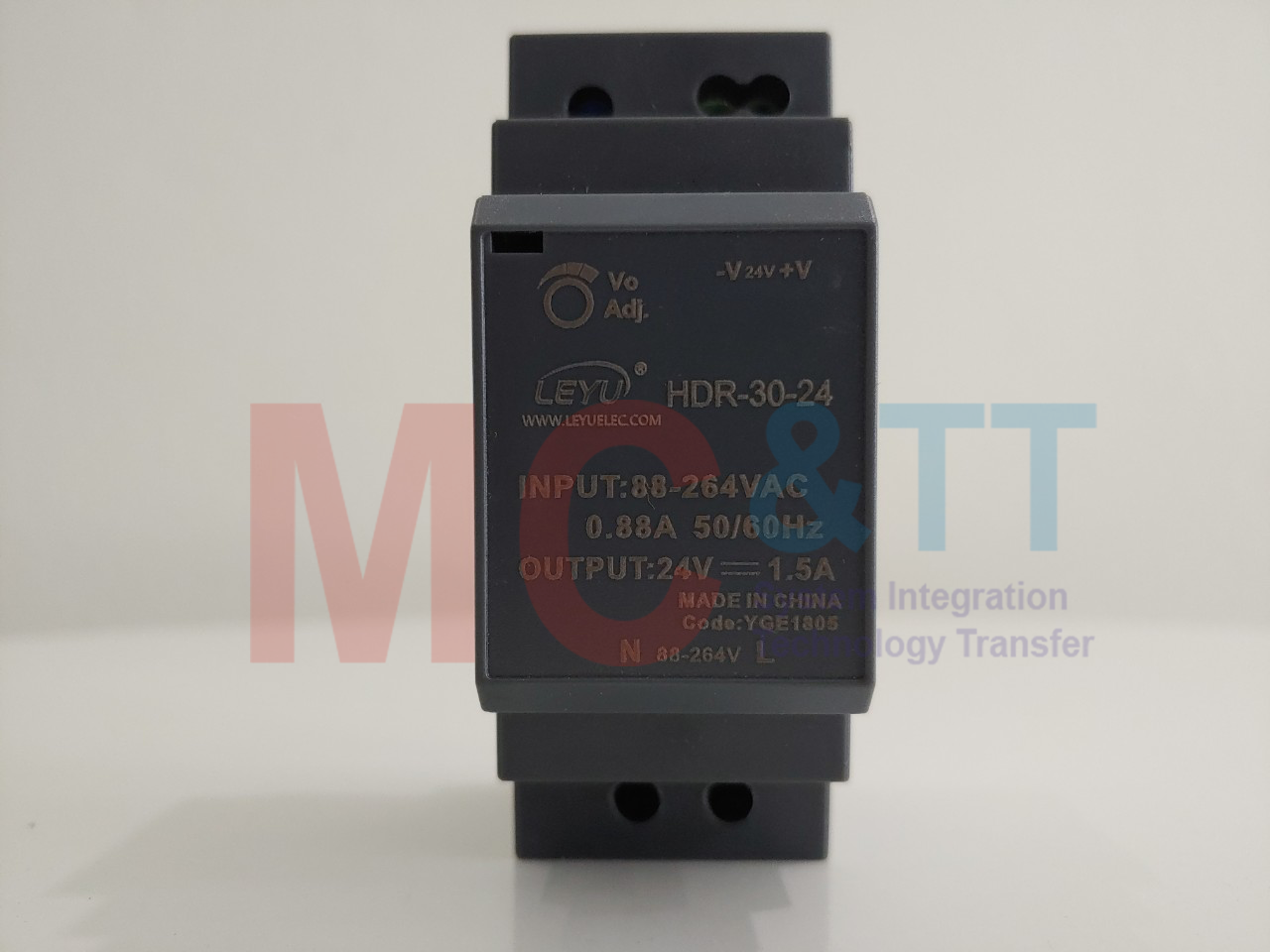

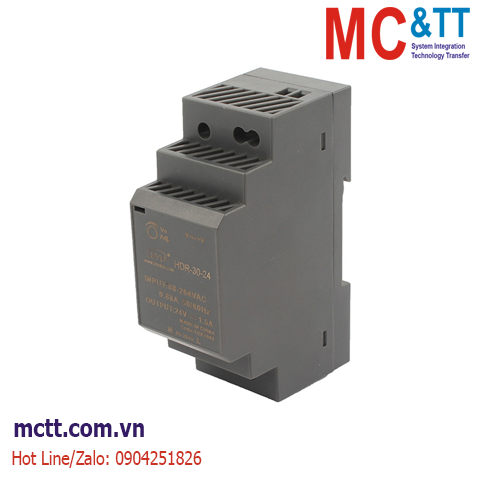

Bộ đổi nguồn Din-Rail 220VAC sang 24VDC 1.5A Leyu HDR-30-24

SPECIFICATIONS

OUTPUT

Model

HDR-30-5

HDR-30-12

HDR-30-15

HDR-30-24

DC Voltage

5V

12V

15V

24V

Rated Current

3A

2A

2A

1.5A

Current Range

0-3A

0-2.5A

0-2A

0-1.5A

Rated Power

15W

24W

30W

36W

Ripple & Noise

80mVp-p

120mVp-p

120mVp-p

150mVp-p

Voltage Adj. Range

4.75-5.5V

10.8-13.2V

13.5-16.5V

21.6-26.4V

Voltage Tolerance

±2%

±1%

±1%

±1%

Line regulation

±1%

±1%

±1%

±1%

Load regulation

±1%

±1%

±1%

±1%

Setup, Rise, Hold Up Time

100ms,30ms/230VAC   100ms,30ms/115VAC at full load

100ms/230VAC         21ms/115VAC at full load

INPUT

Voltage Range

85~264VAC   47~63Hz; 120~370VDC

AC Current

0.88A/115V   0.48A/230V

Efficiency

74%

81%

82%

83%

Inrush Current

Cold start 15A/115V   30A/230V

PROTECTION

Over Load

105%~160% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

Over Voltage

5.75-6.75V

13.8-16.2V

17.25-20.25V

27.6-32.4V

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

Working Temp., Humidity

-20℃~+60℃; 20%~90% RH non-condensing

Storage Temp., Humidity

-40℃~+85℃; 10%~95%RH

Temp. Coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6

SAFETY

Withstand Voltage

I/P-O/P: 3KVAC

Isolation Resistance

I/P-O/P: 100M Ohms / 500VDC/25℃/70% RH

STANDARD

Safety Standard

Design refer to UL60950-1,TUV EN60950-1,EN50178

EMC Standard

Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,EN61204-3, heavy industry level, criteria A

OTHERS

Dimension

98*35 *58mm

Weight

0.2Kg

Packing

48pcs/14Kg/1.02CUFT
