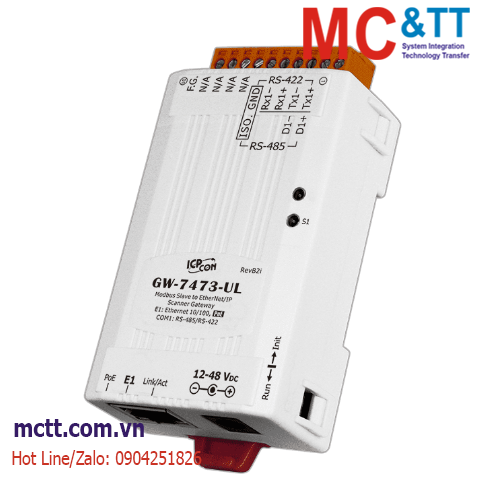

Bộ chuyển đổi Modbus TCP/RTU Slave sang EtherNet/IP Scanner ICP DAS GW-7473-UL CR

Bộ chuyển đổi Modbus TCP/RTU Slave sang EtherNet/IP Scanner ICP DAS GW-7473-UL CR

Features

• Easy firmware update via Ethernet
• Removable terminal block connector
• Tiny form-factor and low power consumption
• Ethernet Protocol: EtherNet/IP Scanner
  • Class 1 (connected) I/O Server and Client
  • Maximum support 5 EtherNet/IP adapter connections
  • EtherNet/IP I/O command data size: 200 bytes
• Supported Objects according to CIP Standard
  • Assembly Object
  • Connection Manager Object
  • Ethernet Link Object
  • Message Router Object
  • TCP/IP Interface Object
• Modbus Protocol: Modbus TCP Server/RTU Slave protocols
• Maximum support 5 Modbus TCP clients
• Supported Modbus RTU Function Codes: 01, 02, 03, 04, 0F, 10

Introduction

The GW-7473-UL series (Modbus TCP/RTU Slave to EtherNet/IP Scanner Gateway) is helpful for data-exchanging between Modbus Master and EtherNet/IP adapter. It reads the register data from the EtherNet/IP adapter and publishes these data to the input register data of the Modbus TCP client as well as Modbus RTU Master. The output data transmitted by the Modbus TCP/RTU Master are updated to the register data of EtherNet/IP adapter. In order to save the installation space, the GW-7473-UL series is also offered in an amazing tiny form-factor that makes it easy to install in anywhere, even directly attached to a serial device or embedded into a machine. The GW-7473-UL series features a powerful 32-bit MCU to handle efficient network traffic and it provides the IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) with a standard category 5 Ethernet cable. Through the NS-205PSE, Poe switch, the GW-7473-UL series can be powered via the Ethernet cable. When there is no PoE switch on site, the GW-7473-UL series provide another way to be powered from DC adapters. These two power interfaces are redundant. If one fails, another will take it over to supply the proper power to the GW-7473-UL series.

The GW-7473-UL series modules have obtained UL certification, meeting strict safety standards including fire resistance, electric shock protection, and durability requirements. This ensures stability and safety across various usage environments, providing consumers with reliable quality assurance. The UTA version uses conformal coating technology that offers excellent resistance to moisture and salt spray, making it particularly suitable for coastal and high-humidity environments.

Applications

• Control System
• Building Automation
• Factory Automation
• Distributed data acquisition

Specifications

Download

Datasheet

Documents

Ordering Information
