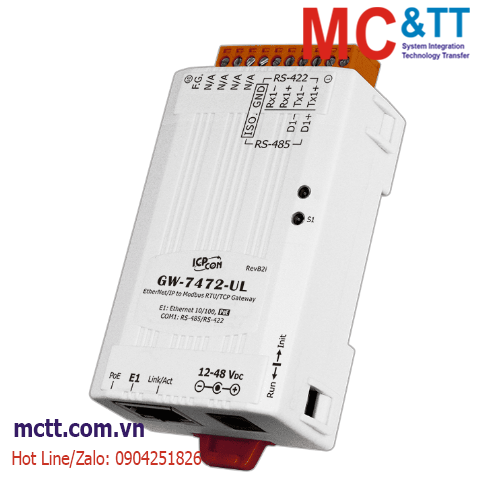

Bộ chuyển đổi EtherNet/IP sang Modbus RTU/TCP ICP DAS GW-7472-UL CR
Features
- Easy firmware update via Ethernet
- Removable terminal block connector
- Tiny form-factor and low power consumption
- Ethernet Protocol: EtherNet/IP adapter
- Maximum number of connections for Explicit Messages: 6
- Maximum number of connections for Implicit Messages: 1
- Supported I/O connection methods:
- Transport and trigger: Exclusive-Owner, Cyclic
- Originator to Target Type: POINT2POINT
- Target to Originator Type: POINT2POINT, MULTICAST
- EtherNet/IP Input/Output command data size: maximum 500 bytes
- Modbus Protocol: Modbus RTU Master
- Maximum support 30 Modbus RTU commands
- Maximum support 10 Modbus TCP servers
- Maximum support 8 Modbus commands for each one Modbus TCP server
- Supported Modbus RTU Function Codes: 01,02,03,04,0F,10
- Maximum data size of one Modbus command: 240 bytes
Introduction
The GW-7472-UL series (EtherNet/IP adapter to Modbus RTU Master and Modbus TCP Client Gateway) is helpful for data-exchanging between the Modbus RTU Network, Modbus TCP Network, and the EtherNet/IP Network. It reads the register data from the Modbus RTU slaves as well as Modbus TCP servers and publishes these data to the input register data of the EtherNet/IP scanner. The output data transmitted by the EtherNet/IP scanner are updated to the register data of Modbus RTU slaves/Modbus TCP servers via the GW-7472-UL series. In order to save the installation space, the GW-7472-UL series is offered in an amazing tiny form-factor that makes it easy to install in anywhere, even directly attached to a serial device or embedded into a machine. The GW-7472-UL series features a powerful 32-bit MCU to handle efficient network traffic and it provides the IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) with a standard category 5 Ethernet cable. Through the NS-205PSE, Poe switch, the GW-7472-UL series can be powered via the Ethernet cable. When there is no PoE switch on site, the GW-7472-UL series provide another way to be powered from DC adapters. These two power interfaces are redundant. If one fails, another will take it over to supply the proper power to the GW-7472-UL series.
The GW-7472-UL series modules have obtained UL certification, meeting strict safety standards including fire resistance, electric shock protection, and durability requirements. This ensures stability and safety across various usage environments, providing consumers with reliable quality assurance. The UTA version uses conformal coating technology that offers excellent resistance to moisture and salt spray, making it particularly suitable for coastal and high-humidity environments.
Applications
- Control System
- Building Automation
- Factory Automation
- Distributed data acquisition
Specifications
| Ethernet |
| Ports |
10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator)
PoE (IEEE 802.3af, Class 1) |
| Protocol |
EtherNet/IP (Adapter) and Modbus TCP client |
| COM Ports |
| Ports |
2-wire RS-485
4-wire RS-422
10-Pin Removable Terminal Block x 1 |
| Protocol |
Modbus RTU master |
| Power |
| Consumption |
0.05 A @ 24 VDC |
| Mechanical |
| Dimensions (mm) |
52 x 27 x 77.4 (W x L x H) |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
GW-7472-UL: -25 ~ +70 °C
GW-7472-UL-UTA: -40 ~ +70 °C |
| Storage Temperature |
-30 ~ +80 ℃ |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| GW-7472-UL CR |
EtherNet/IP to Modbus RTU/TCP Gateway with PoE and 1 RS-422/485 (RoHS)
Includes DC-jack to 2-wire power cable, 0.3 M (CA-002-UL) |
