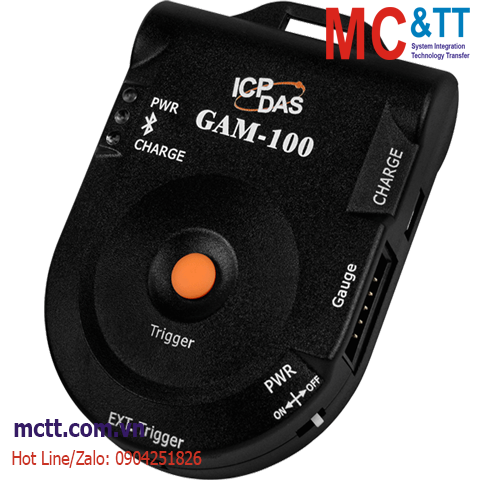

Bluetooth LE Gauge Master ICP DAS GAM-100 CR
Feature
- Frequency: ISM 2.4 GHz
- Standard: Bluetooth 4.0
- Wireless transmission range up to 20 meters (Line of Sigh)
- Spport Mitutoyo SPC data trnasmission
- LED indicators for Battery / RF link / Charge LEDs
- Support different transmission rate: 1/2/5/10 Hz
- Support Trigger button and 3.5 mm foot switch connector to log data
- Support different trigger mode: Single and Continuous
- Power by micro USB chargeable Li-ion battery
- Battery Usage Life: 100 HR/ 10 Hz
- Support Android APP for gauge data acquisition and configuration
Introduction
The GAM-100 is a Bluetooth Low Energy (Bluetooth LE/Bluetooth 4.0) gauge master for Mitutoyo gauges, with SPC output. The gauge master connects Mitutoyo gauges by SPC interface. A smart phone or tablet can use Bluetooth to get Mitutoyo gauge date through the gauge master. With the built-in micro USB chargeable Li-ion battery, the gauge master can work for 100 hours. To get and log the data, an Android APP is designed for a mobile device. The data can be kept in the local memory storage or uploaded to the remote MySQL server.
Application
Specifications
| CPU Module |
| CPU |
32 bit, Microprocessor |
| LED Indicators |
| Status |
1 x Battery
1 x RF link
1 x Battery Charge |
| RF |
| Antenna |
1.0 dBi chip antenna |
| Standard |
Bluetooth 4.0 |
| Transmission Cycle |
1, 2, 5, or 10 Hz, configured by APP |
| Transmission Distance (LoS) |
20 m |
| Mitutoyo Gauge |
| Type |
ID-S1012MX
NTD 10-6:PMX |
| Power |
| Charge Interface |
Micro USB |
| Battery Usage Life |
100 hours / 10 Hz |
| Battery |
Rechargeable Li-ion battery |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
84 x 59 x 21 (W x L x H) |
| Environment |
| Operating Temperature |
0 ~ +45 °C |
| Storage Temperature |
0 ~ +45 °C |
| Humidity |
10~90% |
Download
Datasheet
Documents
Ordering Information
| GAM-100 CR |
Bluetooth LE Gauge Master (RoHS) (Asia Only) |
