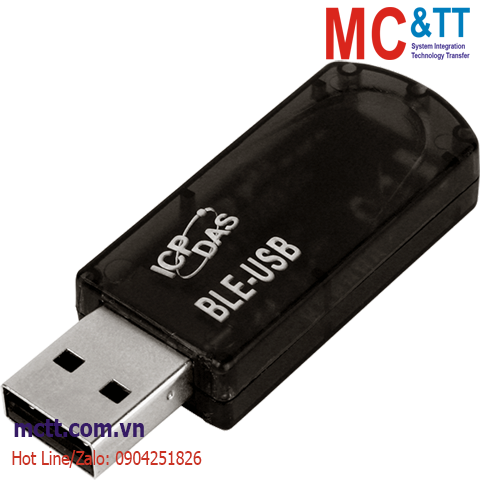

Bộ chuyển đổi USB sang Bluetooth LE ICP DAS BLE-USB CR
Feature
- Frequency: ISM 2.4 GHz
- Standard: Bluetooth 4.0
- Fully Compliant with the USB 1.1/2.0 (High Speed)
- Baud Rate :9600~115200 bps
- Operating Temperatures: -40 °C ~ +80 °C
- Supports multiple connections – Max slave is 3
- Supports two types of communication- advertisements and connection
- Provides AT commands to setup the module
- Provides status / RF link indication LEDs
- GUI Configuration Software (Windows Version)
- No External Power Supply and Antenna required
Introduction
The BLE-USB module is small-sized wireless Bluetooth low energy (LE) converter based on the Bluetooth 4.0 standard that allow USB interface to be converted to Bluetooth LE piconet network. The BLE-USB has two transmission modes – advertisement and connection mode. Users not only can send advertising packet in the advertisement mode but also can send connection packet in the connection mode. It supports different roles in each transmission mode. One is broadcaster and observer in advertisement mode, and the others is central and peripheral in connection mode. User can use AT command to setup the BLE-USB. The AT command not only can set role of Bluetooth LE, but also it can set some connection parameters (e.g. RF power level, broadcast parameters and slave amount). The BLE-USB also provide slave security mechanism. The mechanism can obstruct illegal master, and the slave will ignore connection request from illegal master. In addition, ICPDAS provides software utility to easily configure and test the BLE-USB modules via USB.
Application
Specifications
| LED Indicators |
| Status |
1 x Status
1 x RF link |
| RF |
| Antenna |
1.0 dBi chip antenna |
| Data Transmission Rate |
85 kbps |
| Frequency Band |
2.4 GHz ISM(2402~2480 MHz) |
| RX Sensitivity |
-94 dBm |
| Standard |
Bluetooth 4.0 |
| Tx Power |
-20 ~ 4 dBm |
| Max. Slaves |
3 |
| Transmission Distance (LoS) |
20 m |
| Bluetooth LE |
| Connection Role |
Connection Mode: Central/Peripheral
Broadcast Mode: Observer/Broadcaster |
| Standard |
Bluetooth 4.0 |
| COM Ports |
| Baud Rate |
9600~115200 bps |
| Data Format |
N, 8, 1 |
| USB |
| Specification |
USB 1.1 and USB 2.0 standard compatible |
| Connector |
USB 2.0
Type-A Plug |
| Driver |
Windows 98/2000/XP/Vista/7/10
WinPAC (WinCE6.0/7.0)
LinPAC (Linux kernel 3.0.0-19) |
| Baud Rate |
9600~115200 bps |
| Data Format |
N,8,1 |
| Power |
| Input Range |
USB Socket Powered |
| Consumption |
0.1 W(Max.) |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
19.8 x 58.4 x 9 (W x L x H) |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-25 ~ +75 °C |
| Humidity |
5 ~ 95% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| BLE-USB CR |
USB to Bluetooth LE Converter (RoHS) (Asia Only) |
