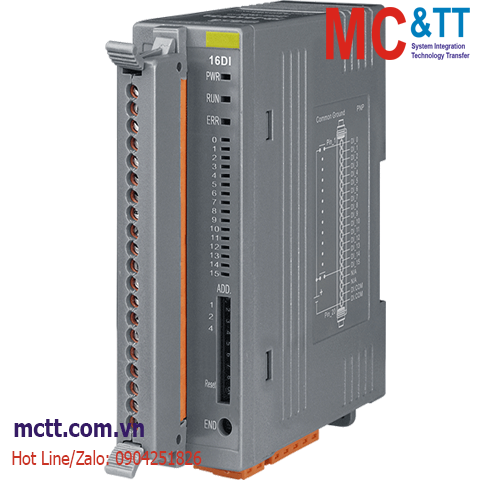

Module FRnet 16 kênh DI ICP DAS FR-2053HTA CR
FR-2053HTA đã dừng và thay thế bằng FR-2053iTA
Feature
• Built-in Wire-saving FRnet DI/DO control
• High-speed transmission reliability
• Simple synchronization mechanism
• No software overhead on protocol processing
• Supporting broadcasting (1:n data transmission)
• Duplicating output easily
• Fixed I/O scan-time and I/O synchronization
• DIN-Rail mountable
Introduction
The FR-2053TA/FR-2053HTA has 16-channel isolated Sink/Source input, while the FR-2057TA has 16-channel isolated source output. The FR-2000 I/O module has an FRnet interface. The users can daisy chain several FR-2000 modules together. Via FRnet, the FR-2000 modules can extend the remote I/O control of PC, PAC and PLC easily. Further information about the networking of FR-2053TA/2057TA; refer to literature related to I-7188EF, I-8172W, FRB-100/200U.
Application
Specifications
| EMS Protection |
| ESD (IEC 61000-4-2) |
Yes |
| LED Indicators |
| Status |
Power, Communication Run, Communication Error, Terminal Resistor, Digital Input |
| Digital Input |
| Channels |
16 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source (NPN/PNP) |
| ON Voltage Level |
+3.5 ~ +30 VDC |
| OFF Voltage Level |
+1 VDC Max. |
| Isolation |
3750 Vrms |
| Input Impedance |
3 KΩ |
| FRnet |
| Wire Cable |
2-wire cabling Belden 9841 (2P twisted-pair cable),
When different cables are used, the transmission distance may change |
| Transfer Speed |
250 kbps for FR-2053TA
1 Mbps for FR-2053HTA |
| Transfer Distance |
Max. 100 m for FR-2053HTA |
| Cyclic Time |
0.72 ms |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
+10 ~ +30 VDC (Non-isolation) |
| Consumption |
2.4 W Max. |
| Mechanical |
| Casing |
Plastic |
| Dimensions (mm) |
33 x 102 x 110 (W x L x H) |
| Installation |
DIN-Rail Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +85 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Datasheet
Documents
Ordering Information
| FR-2053HTA CR |
High-speed FRnet I/O Module with 16-channel Isolated DI (3.5~30VDC) (1 Mbps, Max. 100m) (RoHS) |
